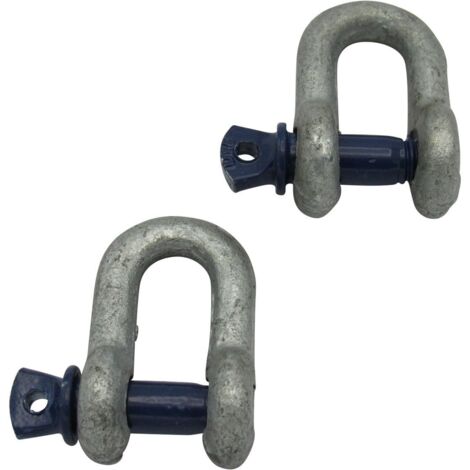

1.5 Ton Dee Shackles with Screw Pin x2 - Lifting 1500KG 7/16" x 1/2"

Name: 1.5 Ton Dee Shackles with Screw Pin x2 - Lifting 1500KG 7/16" x 1/2"
Brand: SECUREFIX DIRECT
SKU: SFUSSPD1.5
Price: 8 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

1.5 Ton Dee Shackles with Screw Pin are designed for lifting applications with a safe working load of 1.5 tonnes (1500 kg). These chain shackles, also known as D-shackles, feature a drop forged manufacturing process and are suitable for various lifting tasks. The shackles are hot dipped galvanized for durability, while the pin is painted for added protection. They are engineered with a high safety factor of 5:1 to ensure optimum safety during use.

Technical specifications

Product Code: SFUSSPD1.5

Product Weight: 0.36 kg

Safe Working Load: 1.5 Tonnes

Manufactured Process: Drop Forged

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Dimensions:

A: 11 mm

B: 13 mm

C: 36 mm

D: 18.5 mm

E: 27 mm

Other information

Conforms to: BS EN 13889: 2003 + A1: 2008

Test Certificate Supplied (Sent Via Email)

*Please Note Colour Can Vary To Picture*

Chain shackles are also known as D-shackles, referring to their 'D' shape design.

A d-shackle is narrower than a bow shackle and generally has a threaded pin or pin close.

The smaller loop is designed to take high loads primarily in line.

We supply a huge variety of lifting equipment.

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Weight
100 g
Maximum load
1500 kg
Material
Two-material
ManoMano Reference
ME27131072
MMID
156991465232
Product code
SFUSSPD1.5
EAN
600988483859
