Moore & Wright MAW1965 Traditional External Micrometer, 0-1 inch Range, 0.001-inch Precision

Description

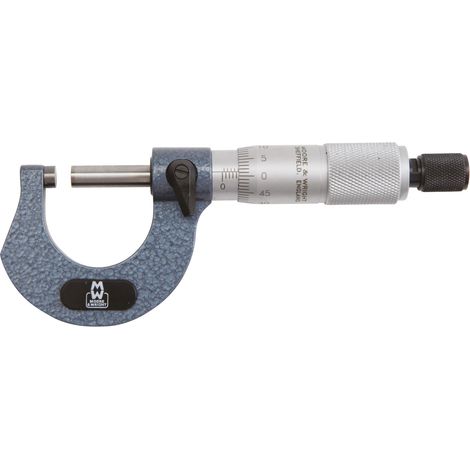

• The Moore & Wright MAW1965 1965 Traditional External Micrometer is designed for precise measurements of external dimensions. It features a durable blue textured frame with tungsten carbide measuring faces and a tapered bow frame for comfortable handling. The micrometer is equipped with a speeder type ratchet locking lever and an adjusting key for ease of use. It is suitable for professional and DIY applications requiring high accuracy.

Specifications

• Measuring range: 0-1 inch
• Resolution: 0.001 inch
• Accuracy: ±0.0001 inch
• Measuring faces: Tungsten carbide with flatness of 0.00005 inch and parallelism of 0.0001 inch
• Spindle diameter: 6.5 mm
• Standards: BS870, DIN 863/1, ISO 361

Compatibility and Accessories

• Supplied with a plastic pocket case for protection and portability

Installation

• No special installation required; simply calibrate and adjust the micrometer before use

Usage

• Use the spindle to measure external dimensions by opening and closing the micrometer around the object
• Lock the measurement with the ratchet lock for consistent readings
• Read the measurement from the scale on the sleeve and thimble
