Moore & Wright 1966M/50 Traditional External Micrometer, 25-50mm Range, 0.01mm Precision, Model MAW1966M50

Description

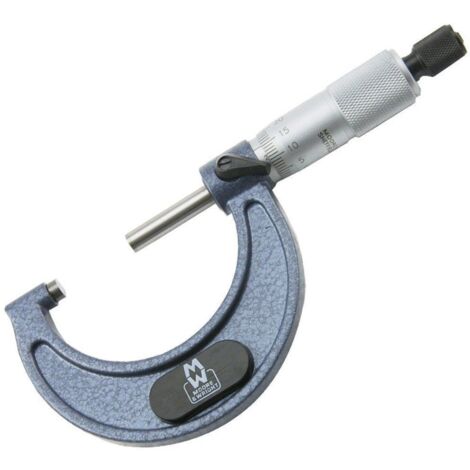

The Moore & Wright 1966M/50 Traditional External Micrometer is designed for precise measurements of external dimensions. It features a durable blue textured frame with tungsten carbide measuring faces for longevity and accuracy. The micrometer includes a 'speeder' type ratchet, locking lever, and adjusting key for ease of use. It is suitable for measuring objects within a range of 25 to 50mm with high precision.

Specifications

• Measuring range: 25-50mm
• Graduation: 0.01mm
• Measuring face flatness: 0.001mm
• Parallelism: 0.003mm
• Accuracy: 0.003mm
• Resolution: 0.01mm
• Spindle diameter: 6.5mm

Compatibility and Accessories

• Manufactured to BS870, DIN 863/1, ISO 361 standards
• Supplied in a protective case

Installation

• Ensure the micrometer is clean before use
• Adjust the spindle using the provided key for calibration if necessary
• Use the ratchet to apply consistent pressure during measurements

Usage

• Place the object between the measuring faces
• Turn the thimble to close the measuring faces onto the object
• Use the ratchet to ensure consistent pressure
• Read the measurement from the scale
