Product information

Description

General description

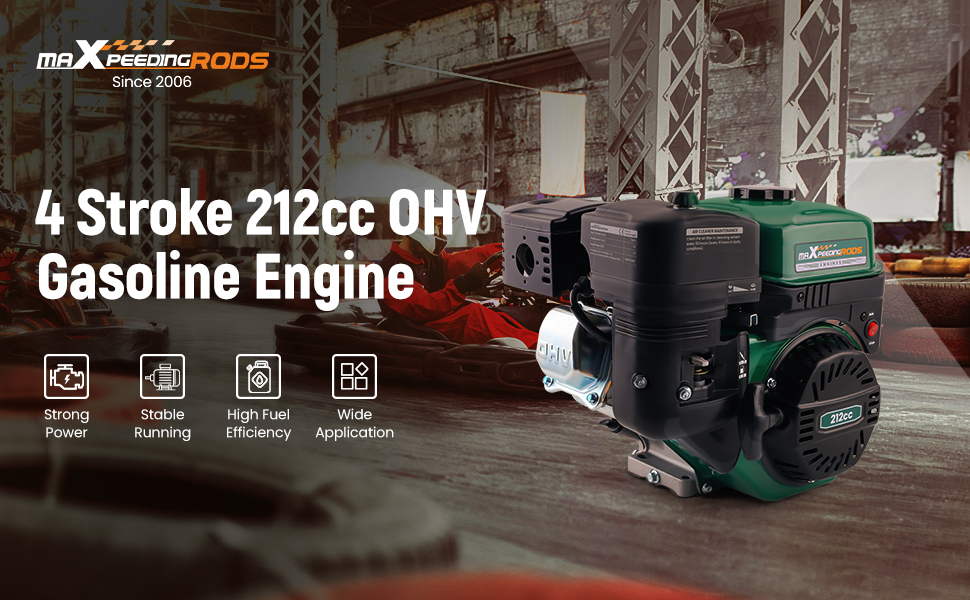

The 212cc 7HP petrol engine is a powerful horizontal 4-stroke OHV gasoline engine designed for various applications. With a rated power of 3.6KW, this engine is ideal for use in go-karts, compressors, lawn mowers, water pumps, pressure washers, and more. Its robust construction ensures reliable performance and efficiency.

Technical specifications

Model: MXR212R

Engine Type: Single Cylinder, 4 Stroke, Forced Cooling, OHV

Rated Power: 3.6 KW

Bore x Stroke: 70 x 55 mm

Displacement: 212 cc

Compression: 8.5 : 1

Starting Method: Recoil

Ignition Method: Transistorized ignition

Horse Power: 7 HP

Fuel Type: Gasoline

Oil Type: SAE 10W-30

Fuel Tank Capacity: 3.6 L

Oil Capacity: 0.6 L

Dimensions (L x W x H): 390 x 325 x 385 mm

Net Weight: 15 kg

Gross Weight: 16.5 kg

Shaft Orientation: Horizontal

Shaft Diameter: 19.05 mm

Shaft Keyway: 4.78 mm

Shaft Length: 61.7 mm

Shaft End: 5/16"-24 Drilled and Tapped

CE Certified: Yes

Euro-V Certified: Yes

Warranty: 2 years

Usage

Ideal for various applications including go-karts, compressors, lawn mowers, water pumps, and pressure washers.

Features a low oil sensor that shuts down the engine when oil levels are too low for safe operation.

Other information

Package includes:
Gasoline Engine (1)
Spark Plug Socket Wrench (1)
Oil Funnel (1)
Owner's Manual (1)

Note:

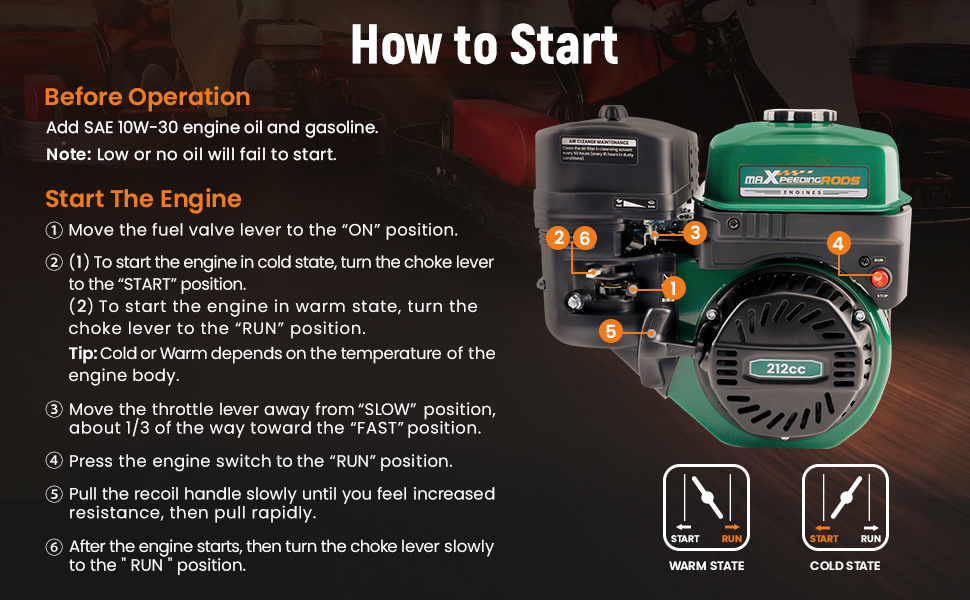

Do not start the engine without refilling oil to avoid permanent damage.
All engines are functionally tested and may contain minimal residual oil or fuel odor.
Installation Manual is NOT included; professional installation is highly recommended.
Do not remove or modify engine parts, as this will void the warranty.
Engine exhaust contains toxic carbon monoxide; follow the manufacturer's instructions to avoid poisoning.

Features

Certification body
CE
Origin
Made in China
Petrol tank capacity
3600 ml
Fuel
Petrol
Engine capacity
212 cm³
Drive shaft diameter
19 mm
Height
38.5 cm
Width
32.5 cm
Length
39 cm
Material
Metal
Number of cylinder(s)
1
Weight
15 kg
Engine fuel system
4 stroke
Cooling system
Air
ManoMano Reference
ME85430571
MMID
109115087186
Product code
K5C12U
EAN
6941324490495

212cc 7HP petrol engine horizontal 4 Stroke OHV gasoline engine 3.6KW
