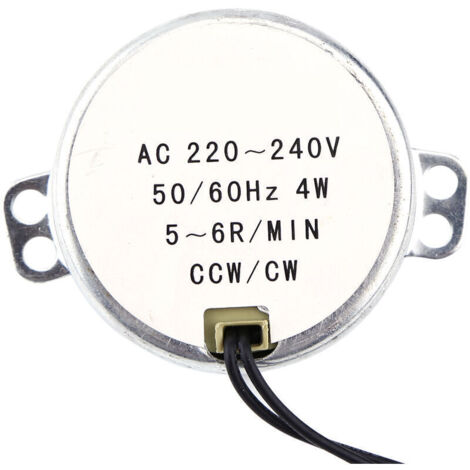

1. This product consists of a permanent magnet synchronous motor and a gearbox.2. Low energy consumption, high torque, low noise, compact design, light weight, and easy operation.
3. At rated frequency, the motor speed is independent of the voltage.
4. The motor coil will not burn out due to overload or blockage.
5. Synchronous motor with CW (clockwise), CCW (counterclockwise), and CW/CCW operation (automatic reversal at high resistance).
Specifications:
Description:Mainly used for fan drives in electric fans, heaters, displays of all kinds, crafts, lamps, lighting, toys and other appliances, air conditioner motors, and microwave motors, etc.
Features:
This product consists of a permanent magnet synchronous motor and a gearbox.
Low energy consumption, high torque, low noise, compact design, light weight, and easy operation.
At rated frequency, the motor speed is independent of the voltage.
The motor coil will not burn out in case of overload or blockage.
Synchronous motor with CW (clockwise), CCW (counterclockwise), and CW/CCW operation (automatic reversal at high resistance). Resistance). Resistance).
Technical Data:
Voltage: AC 220-240 V
Frequency: 50/60 Hz
Rated Power: 4 W
Speed: 0.8-1 rpm / 2.5-3 rpm / 5-6 rpm / 8-10 rpm (optional).
Blocking Torque (each): 14 kgf·cm / 8 kgf·cm / 4 kgf·cm / 3 kgf·cm
Quantity: 1
Weight: 90 g (approx.)
Scope of Delivery:
1 Motor
