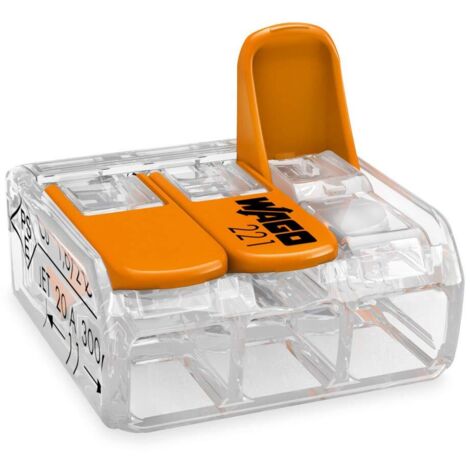

221-413 3-wire connection terminal 0.2 to 4 mm² with control lever, transparent compact model, Box of 50

Technical details:

• 0.14 to 4 mm², fine wire.
• 0.2 to 4 mm², single-strand and multi-wire.
• 0.5 to 6 mm², all types of conductors
• Rated current: 32 A (4 mm²) or 41 A (6 mm²).
• Rated voltage: 450 V.
• Continuous operating temperature: maximum 105 °C.
• Ambient temperature: maximum 85 °C (T85).

So you connect today.

The compact connection terminal of the 221 series

Lever, insert the scale, lever, and it's ready. The 221 series connection terminals make electrical installation of conductor cross-sections from 0.14 to 6 mm² of single-sided fine and stranded conductors easy, fast and safe.

• Comfortable conductor connection from 0.14 to 6 mm².
• Installation of single-sided, fine and stranded conductors
• Time saving for installers and device manufacturers
• Quick installation of devices requiring higher performance.
• Safe laying of long cables with larger conductor cross-sections.
• Lever, insert the ladder, close the lever.

Features:

Lever Terminals for Electrical Installation

The 221 series connection terminals are ideal for wiring work in buildings. Whether in installation sockets, rotary sockets, for air conditioning installation – wherever single-sided or multi-stranded conductors meet, you can connect faster, more space-saving and more securely.

Two sizes for all types of ladders.

With the 2-, 3- and 5-conductor terminals, you can quickly and easily connect all types of conductors with different cross-sections. Fine-wire conductors can be connected with a connection range of 0.14 to 4 mm², single-sided and stranded conductors from 0.2 to 4 mm². The 6 mm² variant covers all conductor types with cross-sections from 0.5 to 6 mm².

Two test openings.

For 221 series terminals, now check on two different sides, even in the built-in position. The new 221 series terminals have two test openings: One for connecting the conductor and one for connecting the opposite side. The test openings ensure comfortable testing conditions, even when installed in a variety of installation environments. Their versions also ensure good contact with all common test probes.

Easy to use.

The connection terminals open particularly easily and quickly. The levers of the 221 series open with less effort, allowing you to quickly connect the ladder without tools! The recessed side handles also prevent slipping and ensure easy gripping of the clamp when connecting the ladder.
