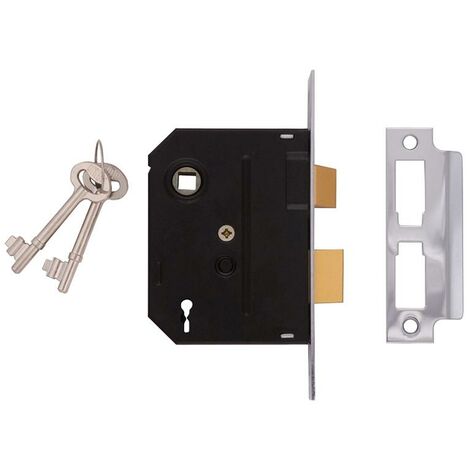

Union 2295-CH-3.00 2-Lever Mortice Sashlock in Chrome Finish, 76mm (3-inch) with 3-Box Packaging

Description

• This is a 2-lever mortice sashlock designed for timber doors hinged on either side. It is suitable for doors up to 54mm thick. The lock features a deadbolt and a reversible latch bolt, operated by keys from both sides and handles from either side. The lock has a two-way action, compatible with lightweight knobs or sprung handles. The deadbolt is made of 11mm aluminium, and the latch bolt is brass and reversible. The striking plate matches the forend finish. It is ideal for enhancing door security and convenience.

Specifications

• Finish: Chrome
• Case size: 76mm x 102mm (3 inches)
• Backset: 57mm (distance from door edge to keyhole center)
• Centre: 57mm (distance from handle follower to keyhole center)
• Deadbolt: 11mm aluminium
• Latch bolt: Brass, reversible
• Keys: Supplied with 2 steel nickel-plated keys
• Keying: Standard differs (numbers from M21H to M40H)
• Security level: 2-lever, suitable for standard security needs

Compatibility and Accessories

• Compatible with timber doors hinged on either side
• Suitable for doors up to 54mm thick
• Includes matching striking plate

Installation

• Designed for mortice installation in timber doors
• Case size: 76mm x 102mm
• Backset: 57mm
• Centre measurement: 57mm from handle follower to keyhole

Usage

• Operated with keys from both sides to lock or unlock the deadbolt
• Handles operate the latch bolt from either side for easy opening
• Suitable for securing internal and external timber doors

Other Information

• Supplied boxed for easy installation
