2.4GHz Wi-Fi Signal Booster, WLAN ZigBee BT (EU Plug)
Of which environmental contribution £0.01 including VAT.
Sold by CHAO WORLDWIDE
You may also like
Compare with similar items
Product information
Description
General Description
This 2.4 GHz WLAN signal amplifier is designed to improve the coverage and stability of wireless networks. It is compatible with WLAN, Wi-Fi, Bluetooth, and ZigBee devices, and uses advanced technologies for efficient amplification. With 20 times the power, it guarantees superior signal quality, even in challenging environments.Technical Specifications
- Frequency Range: 2.4-2.5 GHz
- Operating Voltage: 6-16 V
- Receive Gain: 10 dB ± 1
- Transmit Gain: 13 dB ± 1
- Input Trigger Power: 3 dBm (min.), 20 dBm (max.)
- Maximum Output Power (P1 dB): 36 dBm (4 W)
- DC Supply Current: 435 mA at 28 dBm 9 V
- Noise Factor: Less than 2.5 dB
- TX/RX Switching Delay: Less 1 µs
- Operating ambient temperature: -40℃ to 70℃
- Operating humidity: up to 95% relative
- Item weight: 181 g
- Dimensions: 8.2 x 5 x 2.1 cm
Installation
- Disconnect the power from the access point/router.
- Detach the antenna from your certified wireless access point/router.
- Connect the RG316 cable (included) to the amplifier and the access point/router.
- Connect the antenna to the other end of the amplifier.
- Connect the power to the amplifier first, then to the access point. access point/router.
Usage
This device is ideal for 802.11b/g wireless LAN access point clients, 2.4 GHz wireless WLAN base stations, as well as for indoor distribution (multi-play) systems and ZigBee and BT wireless devices.Other Information
- Plug Type: EU Plug, applicable to Indonesia, Germany, France, Spain, Italy, etc.
- Voltage: AC 100-240 V
- Color: Black
- Material: Plastic

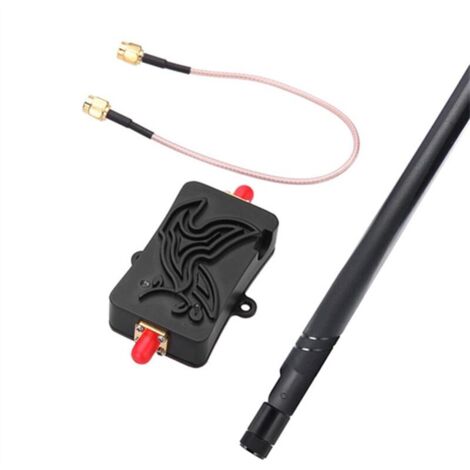

- Package Contents: 1 x 4W Signal Amplifier, 1 x Power Adapter, 1 x 20cm RG316 Cable, 1 x 5dBi Antenna
Features
- BrandXISRENS
- Length1 cm
- Width1 cm
- Height1 cm
- Power1 W
