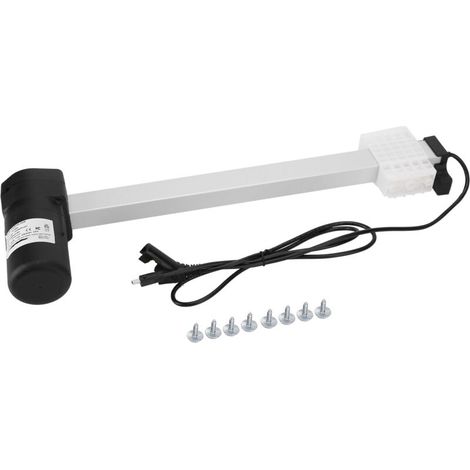

24V Electric Recliner Actuator, 230mm Replacement Kit, DC Motor Actuator for 600kg Electric Recliner Sofa

Welcome to the Debuns store! 🛍️✨ Discover quality products and enjoy an exceptional shopping experience! 💖🚀   Features: 24V DC permanent magnet motor, thrust up to 6000N in push and up to 4000N in pull. Integrated limit switches (non-adjustable), 30mm diameter aluminum outer tube, 24mm diameter aluminum inner tube. Unextended size: 230 + 175 = 405 mm, extended size: 230 + 175 + 230 = 635 mm This linear actuator motor for recliner chairs will open and close the recliner chair's lifting mechanism. Connects to the manual control of the motor assembly via a 5-pin connector, and to the power transformer via the standard 2-pin connector. Important Note: The product is designed for use with the supplied controller, and is therefore equipped with a 2-pin connector by default. If you wish to use your own controller and it has a 5-pin connector, this product will not be compatible. Contents: 1 replacement motor actuator for 38-61 cm recliner chairs, 1 AC line with 8-pin connector, 1 DC line, 1 power adapter, 1 integrated hand controller, 2 pins, 2 cotter pins Product: Electric tilt motor actuator. Stroke length: 230 mm. Permanent magnet motor. Voltage: 24V DC. Maximum pressure: 600 kg/600 kg. Minimum installation size (distance between the push rod holes and the two holes before and after the putter return): L = S (stroke) + 175 mm. The distance between the push rod and the two holes before and after the putter return is extended up to = 2XS (stroke) + 175 mm. No-load speed: maximum 40 mm/s. Rated load rate: 5 mm/s (600 kg) - 40 mm/s (30 kg). Ambient temperature: -5 °C to +50 °C. Standard protection rating: IP44. Non-extended size: 230 + 175 = 405 mm. Extended size: 230 + 175 + 230 = 635 mm. Features: Stylish and compact design with small installation dimensions. Steel rear mounting. Standard protection class IP44. Sound level 48 dB(A), non-actuator charged. Operating cycle: maximum 10% or 2 minutes of continuous use, followed by 18 minutes of inactivity. Option: Standard stroke: 25-800 mm, can be designed according to customer requirements. Free load speed: 6.5 mm-45 mm/s. Rated load speed: 4.5 mm-40 mm/s.   🌟 About Us | Quality Commitment 🌟 Welcome to Debuns! We are committed to providing you with high-quality products, carefully selected to guarantee you the best experience ✨💖. 📦 Guaranteed After-Sales Service: If you have any problems, please feel free to contact us! Our customer service team is here to help you quickly ✅.🚀 Fast Shipping: We process and ship your order as quickly as possible 📬. However, due to exceptional circumstances (holidays, extreme weather conditions, high demand, etc.), a slight delay may occur. In this case, we will keep you informed as soon as possible 📢💌.💯 Quality Guarantee: Your satisfaction is our priority! We are committed to offering you quality products for a worry-free purchase 💎. Thank you for your trust and support 💕. We look forward to providing you with an exceptional shopping experience! 🎁✨ — Debuns 💖
