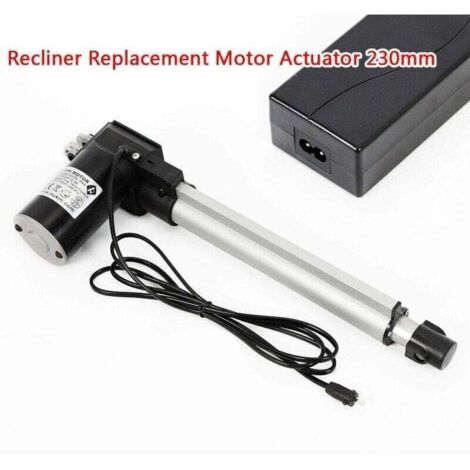

24V Electric Recliner Actuator, 230mm Replacement Kit, DC Motor Actuator for 600kg TRIMEC Electric Recliner Sofa
You may also like
Compare with similar items
Product information
Description
"
Product Information
We look forward to your visit. Please feel free to contact us if you have any questions✨
Features:
24V DC permanent magnet motor, up to 6000N push and up to 4000N pull.
Integrated limit switches (non-adjustable), 30mm diameter aluminum outer tube, 24mm diameter aluminum inner tube.
Unextended size: 230 + 175 = 405 mm, extended size: 230 + 175 + 230 = 635 mm
This linear actuator motor for wheelchairs The tilt mechanism will open and close the lifting mechanism of the recliner chair. Default: 2 pins.
Contents: 1 replacement motor actuator for 38-61 cm recliner chairs, 1 AC line with 8-pin connector, 1 DC line, 1 power adapter, 1 integrated manual controller, 2 pins, 2 cotter pins
Product: Electric tilt motor actuator.
Stroke length: 230 mm.
Permanent magnet motor.
Voltage: 24V DC.
Maximum pressure: 600 kg/600 kg.
Minimum installation size (distance between the push rod holes and the two holes before and after the push rod return): L = S (stroke) + 175 mm.
The distance between the push rod and the two holes before and after the push rod return is extended.
Up to = 2XS (stroke) + 175 mm.No-load speed: maximum 40 mm/s.
Rated load rate: 5 mm/s (600 kg) - 40 mm/s (30 kg).
Ambient temperature: -5 °C to +50 °C.
Standard protection rating: IP44.
Unextended size: 230 + 175 = 405 mm.
Extended size: 230 + 175 + 230 = 635 mm.
Features:
Stylish and compact design with small installation dimensions.
Steel rear mounting.
Standard protection class IP44.
Sound level 48 dB(A), non-actuator loaded.
Duty cycle: maximum 10% or 2 minutes of continuous use, followed by 18 minutes of inactivity.
Option:
Standard stroke: 25-800 mm, can be designed according to customer requirements.
Free load speed: 6.5 mm-45 mm/s.
Rated load speed: 4.5 mm-40 mm/s.
Specifications
- Electrical voltage: 24 V
- Material: Aluminum
- Quantity per pack: 1 product
- Shaft diameter: 23 cm
- ManoMano Ref. ME91672162
- See all
"
Features
- BrandTEHTUY
- ColourGrey
- Pcs per pack1
- Voltage24 V
- Warranty1 year(s)
- Power sourceCorded
- Availability of spare parts1 year(s)
- Height1 cm
- IP ratingIP44
- Width1 cm
- Length23 cm
- MaterialAluminium
- Weight100 g
- Auxiliary contact presenceYes
- Motorisation accessory typeSpares
- Motorization useFor gate
- ManoMano ReferenceME98862524
- MMID102659319599
- Product codeZSino-05280
- EAN6240449290103
