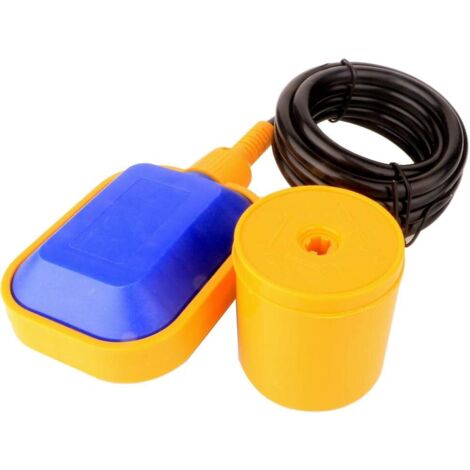

2M Float Switch Automatic Water Level Control, Level Regulator with Cable for Pumps

Name: 2M Float Switch Automatic Water Level Control, Level Regulator with Cable for Pumps
Brand: TINOR
SKU: RN03507
Price: 8.99 GBP
Availability: InStock

~~£21.98~~

Sold by Tinor-GB

Product information

Description

General description

The 2M Float Switch Automatic Water Level Control is designed to regulate water levels in tanks by controlling the inlet and outlet flow. It features a 2-meter cable and operates effectively in both directions, ensuring reliable performance.

Technical specifications

Rated Current/Voltage: AC 10(8A) 250V~10(4A) 380V

Recommended Voltage: DC 24V

Working Temperature: 0°C~60°C

Control Range: 0.2m

Electrical Endurance: 50,000 times

Contacts: NO+NC

Usage

The float switch is used to control water levels by sending signals when the liquid level reaches predetermined higher or lower switching values. It is suitable for both water inlet and outlet applications.

Other information

If you need to extend the wire, be very careful to seal the wire splice if it is going to be underwater.

Features

Brand
TINOR
Material
Plastic
Colour
White
Electric cable length
200 cm
Maximum operating temperature
60 °C
