Completely waterproof, the submersible pump is placed directly on the bottom of the water, offering several advantages:
Aesthetics - it's submerged, so you can't see it on the surface!
There are many different types and models, which can be classified into two main families:

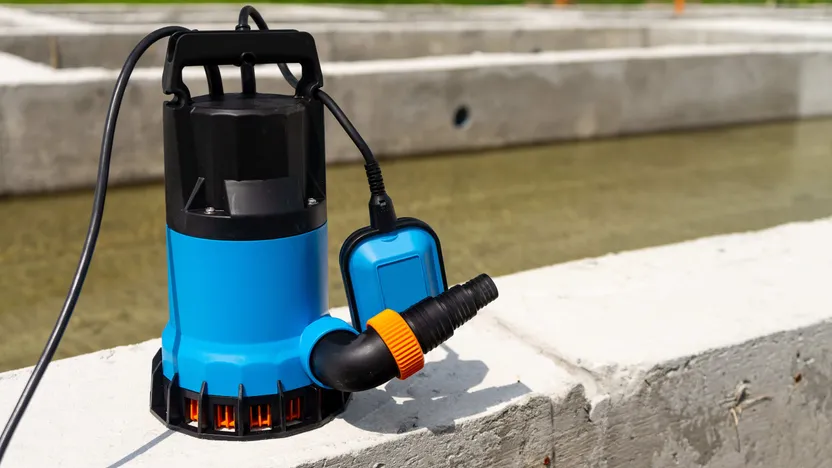

Lifting pumps are mainly used to drain rainwater or wastewater. The smallest models are known as basement drainage pumps. Simple to operate, they are usually controlled by a float directly connected to the pump body which starts and stops the motor. Some models of submersible pump can be used to move unfiltered water. Some pumps are equipped with a shredding wheel - to break down any solid materials entering the pump. This type of pump is designed primarily to empty the container in which it is submerged, rather than apply pressure to create significant flows.
Well suited for use in wells, submersible feed pumps are typically installed to provide drinking water. Their aim being to create pressure, a more complex design is required than that of the lifting pump - multi-stage operation; narrow body; suction strainer. Most submersible water feed pumps have a pump body, one or more stainless steel wheels and are often coupled to a booster pump. These pumps are generally controlled by probes external to the pump. This type of pump is designed primarily to produce continuity of pressure and flow in an water system.
You must consider three key points: the water you plan to pump, the discharge height and the flow rate.
Pressure isn't of great importance for lifting pumps.
To make the right choice of submersible feed pump, consider the following factors:
Effective discharge height (or THM, as above) is an essential criterion for feed pumps, because at the point of discharge (e.g. a water tank) you need pressure as well as flow. To obtain your pump's THM you'll need to make the following calculation: THM = height between pump and discharge point + desired pressure at the discharge point (where 1 bar = 10m) + pressure drops
Pressure corresponds to the force of the water at discharge as a function of pump hose cross-section, and is expressed in B (bars). Many manufacturers also indicate the pressure in CMW (column metres of water). 1 B = 10 CMW. Pressure relates directly to flow. This is a basic law of hydraulics: for a fixed flow, pressure increases as the cross-section of the containing pipe decreases.
Flow is the central technical characteristic for feed pumps! Flow rate expresses the amount of water pumped in a period of time. For the sake of simplicity, you can assume that 6m3/h corresponds to 100l/min. However, when choosing your submersible pump, bear in mind that suction depth and height of discharge point (together dictating effective discharge height) will affect flow rate. Indeed, for a given pipe diameter, the same submersible pump will produce a lower flow rate for a greater discharge height. Conversely, the closer your suction and discharge points are in height, the higher the flow rate. If your submersible pump is intended to supply your home with water, for example, consider that aminimum of 2m3/h (for five people) is requiredat the discharge point. Add 0.250m3/h per additional person.
Note: Since the flow / pressure / THM relationship doesn't necessarily come easily to everyone, pump manufacturers often report it by means of an easy-to-read operating curve. By all means check it out!
In order to prevent unwanted leaks, regardless of the type of pump you should consider fitting your discharge line with a non-return valve.
With regard to the power supply of your pump, make sure that the network you connect it to has protection against overheating. If it doesn't, and the impeller stops or the pump disengages, you'll risk burning out the motor!
On the maintenance side, you'll need to remove the pump at least once a year from its submerged position in order to clean it.At the same time, check that there's nothing to interfere with the rotation of the wheel, check the watertightness of the electrical cables, and test the level sensor(s). Also disassemble and clean the non-return valve(s).
If you're using your pump to shift contaminated wastewater, contact a specialist authorized to pump, clean and process water likely to generate pollution.Whatever type of pump you choose, to keep it working you should always be careful to follow recommended maintenance from the manufacturer. As you may know, electricity and water don't get on well!Always check that the power supply is disconnectedbefore undertaking work on your pump. It should go without saying that you must avoidputting your fingers, hands or any tools near the wheel.
