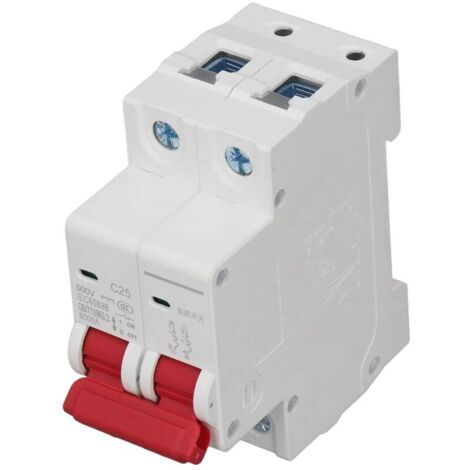

2P 6000A Mini DC Circuit Breaker, DIN Rail Mounting, Photovoltaic Protection, Air Switch, 25A DC500V
Of which environmental contribution £0.01 including VAT.
Sold by Sinocor GmbH
You may also like
Compare with similar items
Product information
Description
Main function: This small circuit breaker is used to protect power distribution installations against overloads and short circuits, and can also be used for control and isolation.
Arc extinction: Extinguishing a direct current arc is more difficult than extinguishing an alternating current arc. This DC circuit breaker is designed with a magnetic system to effectively extinguish arcs, offering excellent performance.
Simple Installation: The circuit breaker has a modular design and adopts a 35mm DIN rail mounting system, making it very easy and convenient to install.
Fast Tripping: The electromagnetic tripping system can trip immediately in the event of a short circuit to provide circuit protection.
Wide Application: This device can be used in DC power systems, ship power systems, photovoltaic solar systems, or other DC systems.
Item Type: DC Circuit Breaker
Material: PA66
Model: DZ47 63Z
Rated Current: 25A
Rated Voltage: 500V DC
Ultimate Short-Circuit Breaking Capacity (Domestic Icn): 6000A
Applications: Solar photovoltaic, electric motorcycle, electric vehicle
Mechanical Life: 20,000 cycles
Applicable Temperature: -35°C to +70°C
How to Use:
1. Open the package and remove the product.
2. Install the circuit breaker in the distribution box.
3. The circuit breaker can be used after the wires are installed.
Package List:
1 DC Circuit Breaker
Arc extinction: Extinguishing a direct current arc is more difficult than extinguishing an alternating current arc. This DC circuit breaker is designed with a magnetic system to effectively extinguish arcs, offering excellent performance.
Simple Installation: The circuit breaker has a modular design and adopts a 35mm DIN rail mounting system, making it very easy and convenient to install.
Fast Tripping: The electromagnetic tripping system can trip immediately in the event of a short circuit to provide circuit protection.
Wide Application: This device can be used in DC power systems, ship power systems, photovoltaic solar systems, or other DC systems.
protective air switch DC circuit breaker photovoltaic mini safety circuit breaker mini 2p circuit breaker DC circuit breaker 2p
Specification:Item Type: DC Circuit Breaker
Material: PA66
Model: DZ47 63Z
Rated Current: 25A
Rated Voltage: 500V DC
Ultimate Short-Circuit Breaking Capacity (Domestic Icn): 6000A
Applications: Solar photovoltaic, electric motorcycle, electric vehicle
Mechanical Life: 20,000 cycles
Applicable Temperature: -35°C to +70°C
How to Use:
1. Open the package and remove the product.
2. Install the circuit breaker in the distribution box.
3. The circuit breaker can be used after the wires are installed.
Package List:
1 DC Circuit Breaker
Features
- BrandTEHTUY
- Length1 cm
- Width10 mm
- Height10 mm
- Weight1 g
