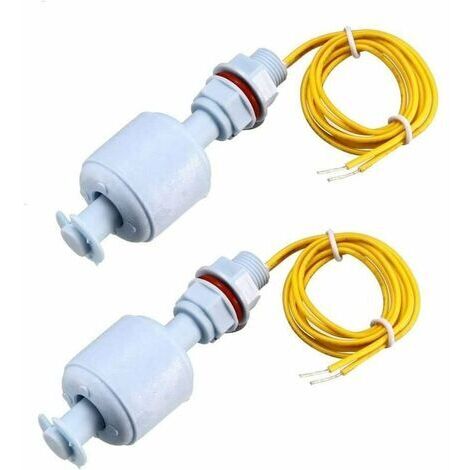

2pcs PP Float Switch for Water Pump M10 Tank Liquid Water Level Sensor,with Cable

~~£56.70~~

Product information

Description

General description

The 2pcs PP Float Switch for Water Pump is designed to monitor liquid levels in various applications. It operates using a magnetic spring switch and a float that contains magnetic materials. As the water level changes, the float moves up and down, activating the switch to detect the liquid position.

Technical specifications

Total Length: 67mm / 2.6"

Float Ball Size: 24 x 23mm / 0.94" x 0.91" (L*D)

Thread Diameter: 10mm / 0.39"

Cable Length: 40cm / 15.7"

Maximum Switching Voltage: 110V DC

Maximum Switching Current: 0.5A

Usage

The float switch is suitable for a wide range of applications, including:

Water heating equipment (e.g., water dispensers, water heaters, humidifiers)

Water towers

Drainage pools

Water tanks

Culture ponds

Other information

Please note that due to the low current capacity of the switch (0.5A), it is necessary to use a relay or contactor when connecting to a load. Relay or contactor not included.

Features

Brand
GOTRAYS
Material
Polypropylene
Colour
Multicolour
Float type
Cable float
ManoMano Reference
ME93911038
