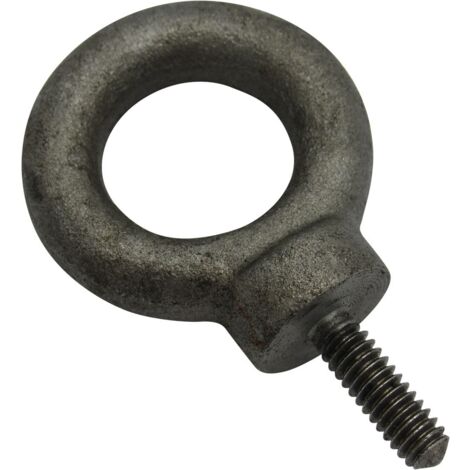

3/4" 1.2 Ton Self Colour Dynamo Eyebolt - 1200KG 20MM Imperial Eye Bolt

Name: 3/4" 1.2 Ton Self Colour Dynamo Eyebolt - 1200KG 20MM Imperial Eye Bolt
Brand: SECUREFIX DIRECT
SKU: SFIDE20
Price: 7.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These 3/4" 1.2 Ton Self Colour Dynamo Eyebolts are designed for various lifting applications. They are particularly popular in the lifting industry due to their tested and certified capabilities for lifting tasks. The eyebolts feature a larger eye diameter, making them suitable for applications that require larger attachments. It is important to note that these eyebolts should only be used for straight lifts and operated by a competent person.

Technical specifications

Thread Diameter: 3/4"

Finish: Self Colour

Safe Working Load (SWL): 1.2 Ton (1200 KG)

Dimensions:

A: 37 mm

B: 74 mm

C: 38.5 mm

D: 19 mm

E: 14 mm

F: 53 mm

G: 17 mm

H: 32 mm

Threads per Inch: 10

Other information

Test Certificate included (sent via email)

Features

Brand
SECUREFIX DIRECT
Length
2.5 cm
Width
2 cm
Height
2 cm
Material
Plastic
