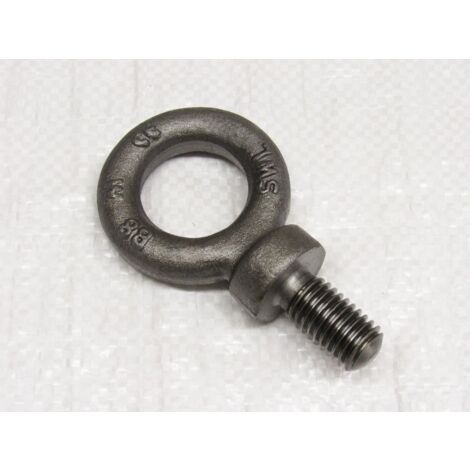

M24 2 Ton Self Colour Dynamo Eyebolt - 2000KG Metric Eye Bolt BS4278

Name: M24 2 Ton Self Colour Dynamo Eyebolt - 2000KG Metric Eye Bolt BS4278
Brand: SECUREFIX DIRECT
SKU: SFMDE324
Price: 9 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

These M24 2 Ton Self Colour Dynamos Eyebolts are designed for various lifting applications. They are widely used in the lifting industry and are tested and certified for lifting purposes. It is essential that these eyebolts are used only for straight lifts and by a competent person.

Technical specifications

Thread Diameter: M24

Finish: Self Colour

Conforms to: BS4278

Product Codes and Specifications:

SFMDE06: SWL 0.06 Ton, A 19.5 mm, B 42.5 mm, C 21 mm, D 6 mm, E 10 mm, F 27 mm, G 10.5 mm, H 20 mm, Pitch 1.00

SFMDE08: SWL 0.15 Ton, A 19.5 mm, B 41.8 mm, C 22.3 mm, D 8 mm, E 10.6 mm, F 27 mm, G 10.5 mm, H 20 mm, Pitch 1.25

SFMDE10: SWL 0.25 Ton, A 19.2 mm, B 41.6 mm, C 21.5 mm, D 10 mm, E 10.7 mm, F 26.5 mm, G 11 mm, H 19.5 mm, Pitch 1.5

SFMDE12: SWL 0.32 Ton, A 25 mm, B 49 mm, C 28 mm, D 12 mm, E 11 mm, F 37 mm, G 10 mm, H 24 mm, Pitch 1.75

SFMDE16: SWL 0.63 Ton, A 28.8 mm, B 58.5 mm, C 32.7 mm, D 16 mm, E 16.8 mm, F 41.4 mm, G 14.2 mm, H 30 mm, Pitch 2.00

SFMDE20: SWL 1.2 Ton, A 36.3 mm, B 73.3 mm, C 39 mm, D 20 mm, E 20 mm, F 53.8 mm, G 18.1 mm, H 32.3 mm, Pitch 2.5

SFMDE24: SWL 2.2 Ton, A 40.5 mm, B 89.2 mm, C 49.6 mm, D 24 mm, E 24.2 mm, F 65.7 mm, G 20 mm, H 47.9 mm, Pitch 3.00

SFMDE330: SWL 3.2 Ton, A 53 mm, B 111 mm, C 65 mm, D 30 mm, E 22 mm, F 79 mm, G 22 mm, H 50 mm, Pitch 3.5

Other information

Test Certificate included (sent via email)

Please note we supply a huge variety of lifting equipment

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Warranty
1 year(s)
Metric thread not standard thread
M24
Material
Two-material
