Product information
Description
Specifications
| Material | Brass Body |
|---|---|
| Finish | Chrome plated to BS EN 248 |
| Fitting | Inlet: G 3/4" Outlet: One G 1/2" and two G 3/4" |
| Water Pressure | Min.0.5 bar, Max. 7.0 bar |
| Cartridge | Thermostatic |
| Guarantee | 10 years |

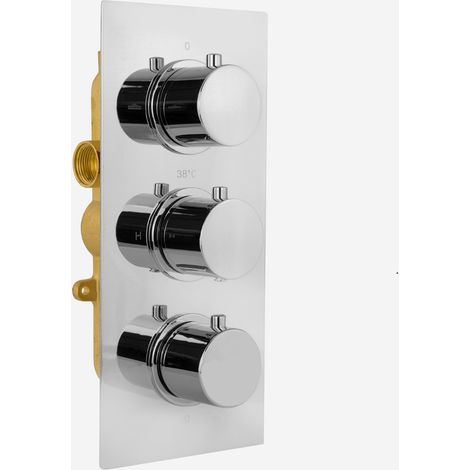

3 Dial Concealed Thermostatic Valve
- Top Dial - Controls water to 1 outlet diverter
- Middle Dial - Temperature Control
- Bottom Dial - Controls water to 2 outlet diverters
- High Quality Design
- Chrome Finish
- Thermostatically controlled
- Manufactured from highly durable brass
- Operating range 20 - 50 deg C with 38 deg C safety button
- Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
- Chosen temperature maintained to within +/-1ºC
- Pre-set maximum temperature
- Automatic shut off in event of water cold supply failure
- UK standard size fitting
Flow Rates (Litres per minute)
- 0.2 Bar - 7.5
- 0.5 Bar - 10.7
- 1.0 Bar - 15.0
- 1.5 Bar - 18.5
- 2.0 Bar - 21.5
- 3.0 Bar - 27.0
Suitable for the following water systems
- Combi-boilers
- Gravity Fed systems
- MegaFlow Systems
- Pumped systems
- Un-vented systems
- Pressurised cylinder systems
- Subject to a minimum pressure of 0.5bar to maximum 7.0bar
Package Contents
- Thermostatic Valve
- Face Plate
- Dials x 3
- Fittings
- Instructions
Features
- BrandNES HOME
- ColourGrey
- MaterialBrass
- Intended use of the tapShower
- ShapeSquare
- Tap activation mechanismMechanical
- Thermostatic mixerYes
- Pcs per pack1
- Wall-mounted tapYes
- Tap head onlyYes
- Type of installation methodWith stand
- Tap typeDual-lever mixer
- Installation typeWith stand
- ManoMano ReferenceME16088582
- MMID575242579825
- Product codeSV73
- EAN7427009329056
