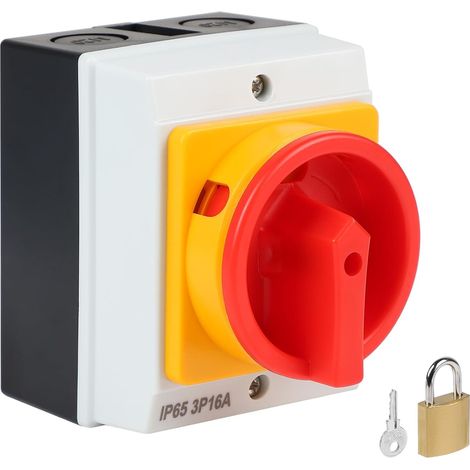

3-Pole Main Switch, Rotary Switch with Housing for Connecting Switches and Isolating Small Circuits, IP65, 16A

【High-Quality Materials】The casing of this main switch is made of high-quality PC and ABS materials, which are flame-resistant, heat-resistant, age-resistant, waterproof, and dustproof, ensuring a long service life.【Pure Silver Contacts】The internal wiring of this switch uses pure silver contacts, offering excellent conductivity, resistance to slippage and wear, low energy loss, and optimal efficiency.【Multiple Cable Inputs】The sides are equipped with several cable entry points, allowing for flexible installation. The 16A and 20A connections are M20, while the 32A and 40A connections are M25. Please drill these holes with a tool before installation.【Wide Application】This load isolation switch is mainly used in circuits with a rated working voltage below 440V. It is primarily used as the main switch for machine tools, fans, pumps, and other loads, and can also be used as a start/stop switch for small-capacity motors.【Technical Specifications】Rated current: 16A; Rated power: 4.5kW; Rated voltage: 230-440V; Temperature range: -25~80°C; Mechanical life: 20,000 cycles; Protection rating: IP65; Number of poles: 3 poles.
Rated current: 20A; Rated power: 5.5kW; Rated voltage: 230-440V; Temperature range: -25~80°C; Mechanical life: 20,000 cycles; Protection rating: IP65; Number of poles: 3 poles.
Rated current: 32A; Rated power: 11kW; Rated voltage: 230-440V; Temperature range: -25~80°C; Mechanical life: 20,000 cycles; Protection rating: IP65; Number of poles: 3 poles.
Rated current: 40A; Rated power: 15kW; Rated voltage: 230-440V; Temperature range: -25~80°C; Mechanical life: 20,000 cycles; Protection rating: IP65; Number of poles: 3 poles.
