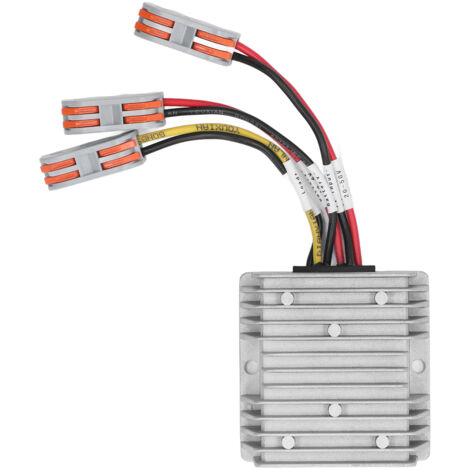

300W 20A Solar Panel Controller MPPT Night Load Output Photovoltaic Solar Controller for Street Light 13.8V
You may also like
Compare with similar items
Product information
Description
1、300W 20A: The MPPT photovoltaic controller uses solar maximum power point tracking (MPPT) technology. 300W output power, 20A load discharge current.
2、High Efficiency: The photovoltaic solar controller adopts a high efficiency synchronous rectification circuit structure. Performance upgrade, efficiency improvement.
3、Multiple Protections: Short circuit protection, over temperature protection, solar input undervoltage protection, battery undervoltage protection, load port short circuit protection.
4、Applications: Photosensitive solar controller, no output during the day, load output at night, suitable for street lights. Energy saving and environmental protection.
5、Installation Attention: The output and input lines can be connected and installed according to the applicable voltage. There is high voltage and high current in the machine, and non professionals are not allowed to disassemble.
Item Type: MPPT Solar Controller
Material: Plastic
Gross Weight: 306g / 10.8oz
Product size: 74x74x32mm / 2.9x2.9x1.3in
Load Discharge Current: 20A
Output Power: 300W
Photosensitive: No output during the day, load output at night, suitable for street lamps
Efficiency: ≥95%
Noise: 55dB
Application: Solar street light controller scene
No Load Loss: 30MA
Voltage Regulation Rate: 1%
Load Regulation: 5%
Full Load Ripple: 400mV
No Load Ripple: 100mV
Discharge Module Input Voltage: Equal to battery voltage
Load Output Voltage: Equal to battery voltage
Load Output Current: 30A (Max 32A)
Static Power Consumption: 12mA
Load Output Mode: Photosensitive
Battery Terminal Short Circuit Protection: Yes
Load Short Circuit Protection Yes
Temperature Protection: Yes
Protection Class: IP67
Working Temperature: -40℃-+65℃
1 x Solar Charge Controller
