Product information

Description

General description

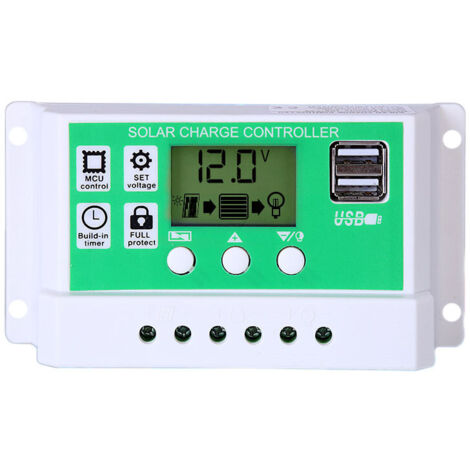

This 30A Solar Panel Charge Controller Regulator is designed for 12V and 24V systems, making it compatible with various battery types including lithium-ion, lithium iron phosphate, and lead-acid batteries (OPEN, AGM, GEL). It features a fully automated 4-stage PWM charging process (Boost, ABS, Equalization, Float) and utilizes a power MOSFET as an electronic switch, enhancing the longevity of your battery life cycle. The controller is equipped with an industrial-grade STM 8 microprocessor and a backlit LCD display that shows charge and discharge parameters for PV, battery, and load. Additionally, it includes dual USB ports capable of delivering a maximum output of 5V at 2.5A.

Technical specifications

System voltage: 12V/24V auto

Charging current: 30A

Maximum input power: 360W/24V (12V system); 720W/48V (24V system)

USB output: Dual USB, 5V/2.5A

Equalization voltage: 12.6V (default)

Discharge reconnect voltage: 10.5V (default)

Discharge stop voltage: 9V (default)

Turn on/off light voltage: 8V

Self-consumption: <10mA

Operating temperature: -35~60°C

Dimensions: 133.5mm x 70mm x 35mm

Installation

Connect the battery to the charge controller (plus and minus).

Connect the photovoltaic module to the controller (plus and minus).

Connect the consumer to the controller (plus and minus).

Note: The reverse order applies when uninstalling to avoid damaging the controller.

Usage

The solar controller automatically manages the operation of the solar panel and battery within the solar system. It features multiple charging timers and automatically identifies day/night conditions. To protect battery life, the controller will shut down automatically if the battery voltage drops below 8V, rendering the LCD display unavailable during this time.

Other information

Protection features include: Dual MOSFET reverse current protection, overcharge protection, overheating protection, undervoltage discharge protection, short circuit protection, open circuit protection, overload protection, and power off memory protection.

Features

Brand
TINOR
Amperage
30 A
Material
Plastic
Power
360 W
Voltage
24 V

Wind turbine buying guide

Interest in domestic wind turbines in the UK increases year after year. Ideal for a countryside home, but trickier to set up in a city, wind turbines can be a great way to get into renewable energy and off-grid energy production. Read on to find out more about installing a wind turbine for more sustainable living.

30A Solar Panel Charge Controller Regulator for 12V/24V Lead Acid/Lithium Battery Intelligent Charge Controller with LCD Display and Dual USB Port,On/Off Timer Setting
