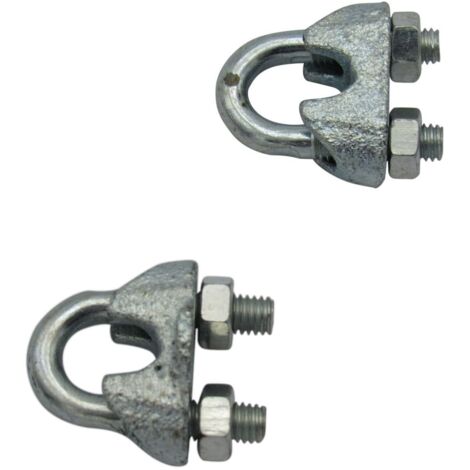

34MM Wire Rope Grips x2 - DIN741 Commercial Cable Clamp

Name: 34MM Wire Rope Grips x2 - DIN741 Commercial Cable Clamp
Brand: SECUREFIX DIRECT
SKU: SFCOMG30
Price: 12.5 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

34MM Galvanised Commercial Wire Rope Grips are designed for secure and reliable use with 34MM wire rope. Ideal for applications such as boat rigging, public areas, and various other uses, these grips provide excellent corrosion resistance due to their galvanised finish. This product comes in a pack of two, ensuring you have the necessary components for your projects.

Technical specifications

Product Code: SFCOMG32

Product Weight: 1.41 KG

Dimensions:

A: 58 MM

B: 36 MM

C: 41 MM

D: 16 MM

E: 121 MM

F: 48 MM

G: 78 MM

Installation

Prior to fitting, grease the threads on the nuts and bolts.

Ensure spacing between grips is at least 6 times the diameter of the rope.

Orient the grip correctly, placing the 'u' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

Leave unused for 24 hours and check torque setting again, re-tightening if necessary.

After the first application of the load, re-check torque setting and re-tighten if necessary.

Periodically check the torque setting during service.

Usage

The main use of wire rope grips is to create loops in wire rope, providing a secure connection for various applications.

Features

Brand
SECUREFIX DIRECT
Weight
1410 g
Material
Steel
Colour
Multicolour
Product finish
Galvanised
