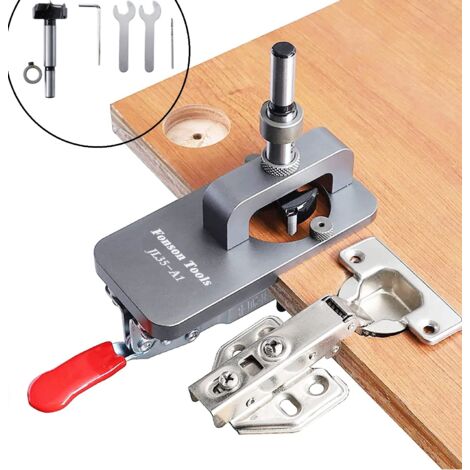

35mm Hinge Jig, Door Cabinet Hinge Jig, Concealed Hinge Jig, Hole Punch, Drill Guide Locator for DIY Woodworking
