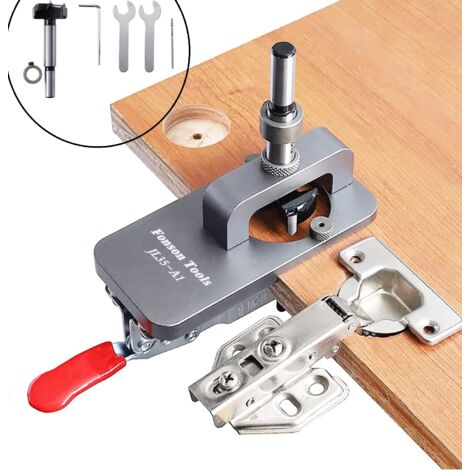

35mm Hinge Jig, Door Cabinet Hinge Jig, Concealed Hinge Jig, Hole Punch, Drill Guide Locator for DIY Woodworking-

【Precise and Durable】Made of aluminum alloy, our 35mm hinge drilling tool has a long service life with precision manufacturing, accurate locking, and convenient operation.

【Installation】1. Install a 35mm hole opener;

2. Adjust the drilling depth to 12~13mm, and then lock the limit ring;

3. Adjust the fixed size of the black pressure block of the quick clamp;

4. Move the puncher to the marking and drilling position of the board and lock the quick clamp;

5. Clamp the drill handle, press the hole to a depth of 12-13mm;

6. Drill a 2mm screw hole on the left and right sides.

【Widely Used for Most Common Hinges】The distance between the 35mm hole and the edge is 5mm, which is suitable for most common hinges. As a DIY woodworking tool, it is very convenient for you to mount the concealed hinges on your doors or cabinets. No professional is required.

【Package Contents】The package includes: Hinge drilling locator body * 1, 35mm hole opener (with limit ring and fixed screw) * 1, 2mm drill bit * 1, wrench * 2, hex bar wrench * 1.

Product Description

35mm Hinge Jig, Door Cabinet Hinge Jig, Concealed Hinge Jig, Drill Hole Puncher, Precise Locking Drilling Jig Woodworking Drill Guide Locator for DIY Woodworking

【How to Install】1. Install a 35mm hole opener;

2. Adjust the drilling depth to 12~13mm, and then lock the limit ring;

3. Adjust the fixed size of the black pressure block of the quick clamp (Note: The adjustable fixed board size of the tool is 15-25mm);

4. Move the puncher to the marking and drilling position of the board and lock the quick clamp;

5. Clamp the drill handle, press the hole to a depth of 12-13mm at a constant speed;

6. Drill a 2mm screw hole on the left and right sides, and then install the 35mm hinge.

【Package Contents】

Hinge Drilling Locator Body * 1

35mm Hole Opener * 1

Limit Ring * 1

Limit Ring Fixed Screw * 1

Wrench * 2

2mm Drill Bit * 1

Hexagonal Bar Wrench * 1
