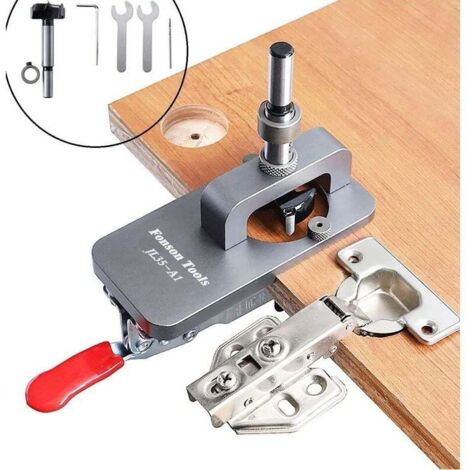

35mm hinge template, cabinet door hinge template, concealed hinge template, hole punch, drilling guide locator for DIY woodworking

【Precise and Durable】Made of aluminum alloy, our 35mm hinge drill bit has a long lifespan thanks to its precision manufacturing, precise locking mechanism, and convenient operation.

【Installation】1. Install a 35mm hole opener;

2. Adjust the drilling depth to 12-13mm, then lock the limit switch;

3. Adjust the fixed size of the black pressure block on the quick-release clamp;

4. Move the drill to the marking and drilling position on the board and lock the quick-release clamp;

5. Squeeze the drill handle and press into the hole to a depth of 12-13mm;

6. Drill a 2mm screw hole on the left and right sides.

【Widely Used for Most Common Hinges】The distance between the 35mm hole and the edge is 5mm, which is suitable for most common hinges. As a DIY tool for woodworking, it is very convenient for removing concealed hinges on your doors or cabinets. No professional is required.

【Package Contents】The package includes: Hinge Drill Locator Body*1, 35mm Hole Opener (with limit ring and fixed screw)*1, 2mm Drill Bit*1, Wrench*2, Hex Key*1.

Product Description

35mm hinge jig,door cabinet hinge jig,concealed hinge jig,hole puncherdrilling,precise jig lockingjigdrilling jigwoodworking jigdrilling guide locator fordiy woodworking

【How to install

1.Install a 35mm hole opener;

2.Adjust the drilling depth to 12~13mm, then lock the limit ring;

3.Adjust the fixed size of the black pressure block of the quick clamp (Note: the size of the adjustable fixed board of the tool is 15-25mm);

4.Move the puncher to the marking and drilling position of the board and lock the quick clamp;

5. Squeeze the drill handle, press into the hole to a depth of 12-13mm at a constant speed;

6. Drill a 2mm screw hole on the left and right sides, then install the 35mm hinge.

【Package Contents】

Hinge Drill Locator Body*1

35mm Hole Opener*1

Limit Ring*1

Limit Ring Fixing Screw*1

Wrench*2

2mm Drill Bit*1

Hex Wrench*1
