35 Mm Perforatrice, Guide De Forage Trou Charnière Trouver Un Jig Outil Pour Bricolage Menuiserie

(£26.99/pc)

Of which environmental contribution £0.10 including VAT.

Sold by Serbia

Often purchased together

Product information

Description

General description

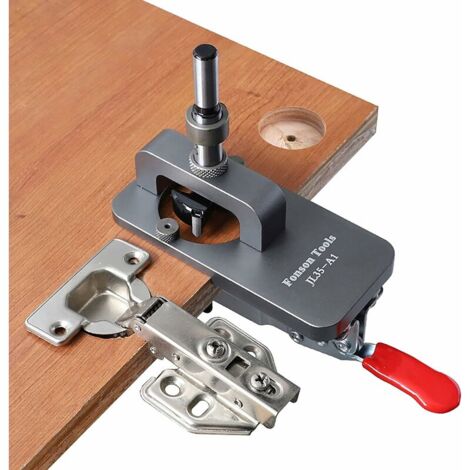

The 35 mm hinge drilling jig is designed for DIY woodworking projects, making it easy to install 35 mm hinges accurately without the need for professional assistance. Constructed from durable aluminum alloy, this tool ensures a long lifespan and reliable performance. It features a sturdy base with two countersunk screws for secure attachment to your work surface, enhancing stability during use.

Technical specifications

Material: Aluminum alloy

Size: 120 x 60 x 120 mm (4.72 x 2.36 x 4.72 inches)

Drilling depth: 12 to 13 mm

Adjustable board thickness: 15 to 25 mm

Distance from the hole to the edge: 5 mm

Installation

Secure the jig to your work surface using the two countersunk screws.

Install the 35 mm hole opener and adjust the drilling depth to 12-13 mm, then lock the limit ring.

Adjust the quick clamp's black pressure block to fit the board thickness between 15-25 mm.

Usage

Position the punch at the marked location on the board and tighten the locking block quickly.

Attach the hole opener to an electric drill and maintain a constant speed to drill the hole to the specified depth.

Drill 2 mm screw holes on both sides of the hinge hole.

Features

Brand
BSR
Material
Aluminium
Origin
Made in China
Pcs per pack
1
Colour
Grey
Chuck diameter
35 mm
Height
12 cm
Compatible drill
Standard drill
Weight
200 g
Type of drill accessory
Jig
ManoMano Reference
ME73069218
MMID
555342576560
Product code
SRM-54169
EAN
6286558461119
