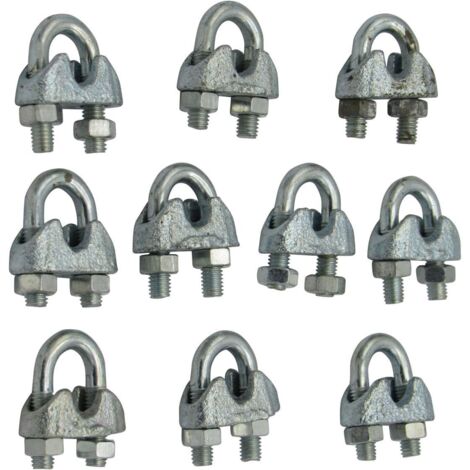

5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable Clip

Name: 5MM Wire Rope Grip x10 - DIN741 Galvanised Commercial Bulldog Clamp Cable Clip
Brand: SECUREFIX DIRECT
SKU: SFCOMG03
Price: 5 GBP
Availability: InStock
Rating: 4 (1 reviews)

Sold by SecureFix Direct

Product information

Description

General description

Our 5MM Wire Rope Grips are manufactured from mild steel with a galvanised coating for enhanced corrosion resistance. These grips are designed for creating loops in wire rope assemblies or for temporary joins, making them ideal for rigging setups on boats and various applications on land. Each pack contains 10 grips, suitable for 5MM wire rope.

Technical specifications

Product Code: SFCOMG05

Product Weight: 0.14 kg

Finish: Galvanised

Quantity: 10

Dimensions:

A: 13 mm

B: 6.2 mm

C: 11 mm

D: 4.6 mm

E: 23.8 mm

F: 9.2 mm

G: 22 mm

Installation

Prior to fitting, grease the threads on the nuts and bolts.

Maintain a spacing of at least 6 times the diameter of the rope between grips.

Ensure the grip is oriented correctly, with the 'u' bolt on the unloaded end of the rope.

Tighten each nut evenly and in turn to achieve the recommended torque settings.

After installation, leave unused for 24 hours and re-check torque settings, re-tightening if necessary.

After the first application of load, re-check torque settings and re-tighten if necessary.

Periodically check the torque settings during service.

Features

Brand
SECUREFIX DIRECT
Weight
140 g
Warranty
1 year(s)
Certification body
DIN
Pcs per pack
1
