433MHz Wireless Remote Control Switch, 220V Universal Projector Curtain Wireless Remote Control Lift Switch Brand Electric Screen Fabric Controller

Overview This set of wireless controllers is mainly used for front and rear control of various 220V AC operating voltages, such as smart storage boxes, restaurant storage boxes, electric car tailgate boxes, electric barriers, electric doors, electric windows, curtain lifts, etc. Stable and reliable control, long-distance remote control operation, simple and reliable operation of the entire system, high identification security performance (1 million groups), and various safety protection interfaces (such as stroke protection and motor stall protection), among other advantages. Technical Specifications: Operating Voltage: AC220 ± 10% Load Power: ≤500W Working Frequency: 315 MHz, 433 MHz (working frequency can be customized) Operating Temperature: -25℃ ~ +75℃ Remote Control Distance: 100 meters (open space) Instructions: Code Pairing: Open the receiver panel and connect the power supply. Press and hold the learning button (setting button). The indicator light will start flashing. Release the learning button and press any button on the remote control. The indicator light will turn off, indicating successful learning. (Once learning is complete, press the up or down button on the remote control to hear the relay clicking.) If it doesn't work, please repeat the learning process. Wiring: Please connect the power line and each control line according to the markings on the circuit board. Remote control and control panel button functions: △ button: scroll up; = button: stop, release when power is off; M key: Scroll down

Product parameters:

Product name: Wireless control equipment for electric screen.

Operating voltage: AC220V

Load power: ≤500W

Working frequency: 315MHz

Control distance: 100 meters (open space)

Operating temperature: -25°C~+75°C

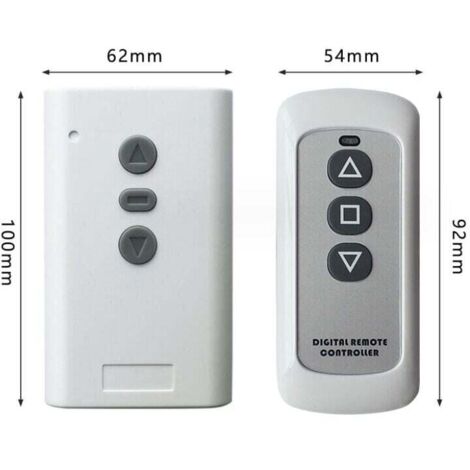

Controller size: 100 × 62 × 30 mm Remote control size: 92 × 54 × 25 mm
