H Beam Steel Connecting Rods for Austin Mini Cooper 1275cc plus Conrods 4pcs

Application

for Austin mini 1275cc A plus series

Fitment:
1964–1971 for Austin/for Morris for Mini Cooper S
1965-1974 for Mini Marcos
1966–1970 for Austin-Healey Sprite MkIV
1966–1974 for MG Midget MkIII
1967–1968 for MG 1300/Wolseley 1300
1967–1968 for Riley Kestrel 1300
1967–1968 for Vanden Plas Princess 1300
1967–1973 for Morris 1300
1967–1974 for Austin 1300
1967 for MG 1275/Riley 1275
1967 for Wolseley 1275
1967 for Vanden Plas Princess 1275
1968–1969 for Riley Kestrel 1300/Riley 1300
1968–1971 for Austin America (automatic)
1968–1973 for Wolseley 1300 (manual)
1968–1973 for MG 1300 MkII
1968–1974 for Vanden Plas Princess 1300 (manual)
1968 for MG 1300/Riley Kestrel 1300
1969–1971 for Morris 1300GT
1971–1982 for Mini Moke Californian Australian only
1969–1974 for Mini 1275GT
1969–1974 for Austin 1300GT
1971–1980 for Morris Marina
1971 for Austin Sprite
1973–1980 for Austin Allegro
1974–1980 for Mini 1275GT
Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

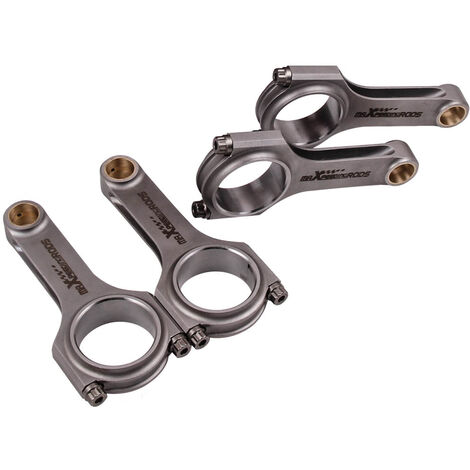

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length:146.05mm/5.75"
Big end diameter:48.15mm/1.896"
Small end diameter:20.65mm/0.813"
Big end width:26.2mm/1.031"
Small end width:22.5mm/0.886"

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
