General description
The 44pcs Solar Connector set includes 22 pairs of male and female solar panel connectors, along with 22 pairs of solar connector pins. This comprehensive kit is designed for easy installation and reliable performance, making it an excellent value for money. The connectors are made from tinned copper, ensuring a solid connection that withstands heavy loads. The waterproof design features a sealing ring to protect against water and dust, enhancing durability and longevity.
Technical specifications
- Rated current: 30A (2.5-4.0mm²)
- Rated voltage: 1000 V DC
- Connector contact resistance: ≤0.5 mΩ
- Waterproof rating: IP67
- Flammability rating: UL94-V0
- Safety: II
- Adapter thread: OD 5mm-7mm
- Insertion force: ≤50N
- Withdrawal force: ≥50N
- Operating temperature range: -40℉ to 221℉
- Suitable cable: AWG 14/13/12/11/10
- Material of connector conductor: copper, tin
- Connector insulation material: PPO or PBT

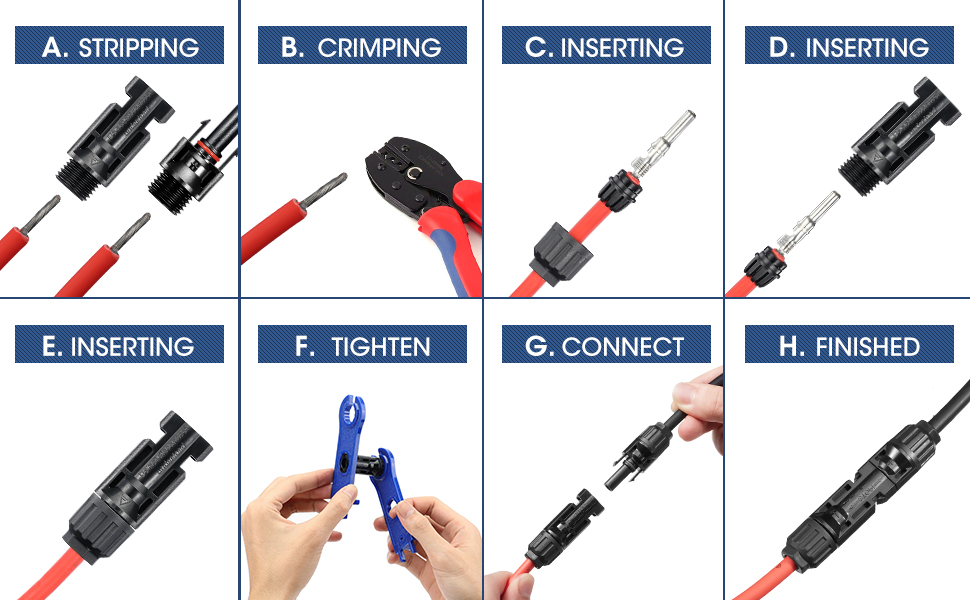

Installation
- Connection: Align the male and female connectors and push them together.
- Separation: Press the sides of the built-in lock and pull the connectors apart.
Usage
This solar connector set is suitable for a wide range of photovoltaic cables with insulation diameters from 13AWG to 10AWG, making it compatible with various specifications of solar cables available on the market.
