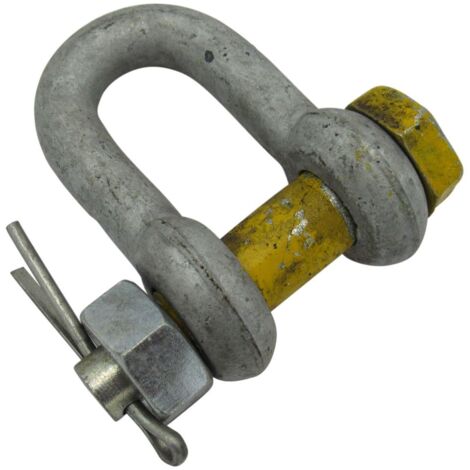

4.75 Ton Safety Pin Galvanised Dee Shackle - 4750KG Upset Forged Tested Certified

Name: 4.75 Ton Safety Pin Galvanised Dee Shackle - 4750KG Upset Forged Tested Certified
Brand: SECUREFIX DIRECT
SKU: SFYPUFSAD4.75
Price: 8.35 GBP
Availability: InStock

Sold by SecureFix Direct

Product information

Description

General description

4.75 Ton Safety Pin Galvanised Dee Shackle is designed for heavy-duty lifting applications. Manufactured using upset forged technology, this shackle features a hot-dipped galvanised body and a painted pin finish, ensuring durability and resistance to corrosion. With a safety factor of 5:1, it provides optimum safety during use. The shackle is fitted with a safety pin for added security.

Technical specifications

Safe Working Load: 4.75 Tons

Body Finish: Hot Dipped Galvanised

Pin Finish: Painted

Safety Factor: 5:1

Conforms to: BS EN 13889: 2003 + A1: 2008

Product Code: SFYPUFSAD4.75

Dimensions:

A: 20 mm

B: 22 mm

C: 61.5 mm

D: 32 mm

E: 48.5 mm

Other information

Test Certificate Supplied (Sent Via Email). *Please Note Colour Can Vary To Picture*.

Features

Brand
SECUREFIX DIRECT
Pcs per pack
1
Warranty
1 year(s)
Maximum load
4750 kg
Material
Two-material
