4x H-Beam Forged 4340 EN24 Connecting Rods Conrods For BMW N20B20 N26B20 2.0T

Application

for BMW N20B20 2.0T  /  N26B20 (US only)


Details fitment:


N20B20
115 kW version
2013-2016 E89 Z4 sDrive18i
2013-present F25 X3 sDrive18i
135 kW version
2011–2015 E84 X1 xDrive/sDrive20i
2011–present F25 X3 xDrive20i
2012–2015 F30 320i
2013–2016 F34 320i GT
2011–2016 F10 520i
2013-2016 F10 520Li
2011–2016 E89 Z4 sDrive20i
2014–present F22 220i
2015-2017 Brilliance Huasong 7 MPV
160 kW version
2012–2017 F20 125i
2013–2016 F10 525Li
2015-2017 Brilliance Huasong 7 MPV
170 kW version
2014–2017 F22 225i
180 kW version
2011–2016 E89 Z4 sDrive28i
2011–2015 E84 X1 xDrive/sDrive28i
2012–present F25 X3 xDrive28i
2011–2016 F30 328i
2011–2016 F10 528i
2013–2016 F34 328i GT
2014–2016 F22 228i
2014–2017 F26 X4 xDrive20i


N26B20
2012-2016 F30 328i / 328iX (USA only)
2012-2016 F22 228i / 228iX (USA only)
--


Pin Type: Floating Pin Piston

Dimension

Center to center length:144.3mm/5.681"
Big end diameter:53.6mm/2.11"
Small end diameter:22mm/0.866"(tapered small end)
Big end width:20.8mm/0.819"
Small end width:20.8mm/0.819"

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

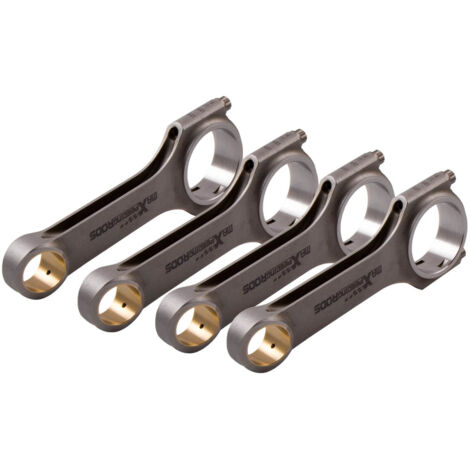

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .01 mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
