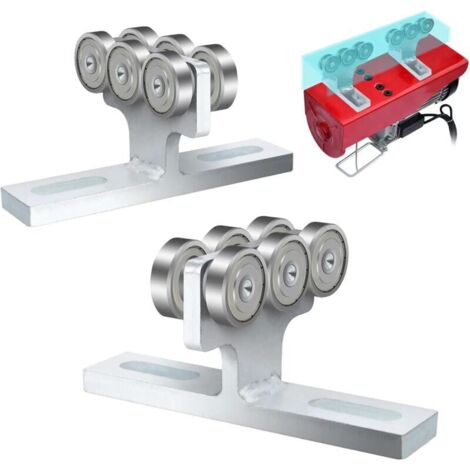

6-wheel electric hoist installation trolley, quiet operation for use with 3.8 cm wide and all 3.8 cm or larger suspension channels

1. High quality: 6 components of the trolley with high-strength carbon steel bearings, zinc-plated to prevent rust and corrosion, precision CNC machining process, reinforced welding, each 6-wheel pallet truck offers up to 1.8 lbs of load capacity.

2. Easy to use: For example, with an electric crane PA200-PA1000, the first step is to install the fixed column channel and install the screws outside the rail (not inside the rail). The second step involves the electric crane – there is a large installation hole at the bottom – the electric trolley and the electric crane with screws. The third step involves inserting the pulley into the column channel above (the second and third intermediate steps can be interchanged).

3. Can move in multiple directions: The pulley trolley with a double sliding system can be adjusted in any direction, making work more comfortable.

4. SECURE, ROBUST, AND SMOOTH: 6 integrated stainless steel bearings with welded bearings and a pin process provide greater stability for safe use, in addition to virtually no noise.

5. Multi-channel use: For 1-5/8 inches (approximately 4.4 cm) wide and all strut channels 3.8 cm or larger.

1. Product Name: 6-Bearer Trolley Assembly.

2. Material: Carbon Steel.

3. Finish: Galvanized Steel Trolley.

4. Size:

Bottom Opening Width: 1 cm.

Distance between the two holes: 13.5 cm.

Total length: 15 cm.

Load capacity: 1260 kg.

5. Box contents: 2 x 6-wheel trolleys.

6. Specifications:

Applicable strut channels: 1.75 inches wide and 1.8 inches high. (You need a larger strut channel if your mounting screws are installed inside the rail.)

7. Note: If the mounting screws are installed inside the strut channel, the tram cannot pass through the track. Therefore, the screws that secure the strut channel must be installed outside the track.
