General description

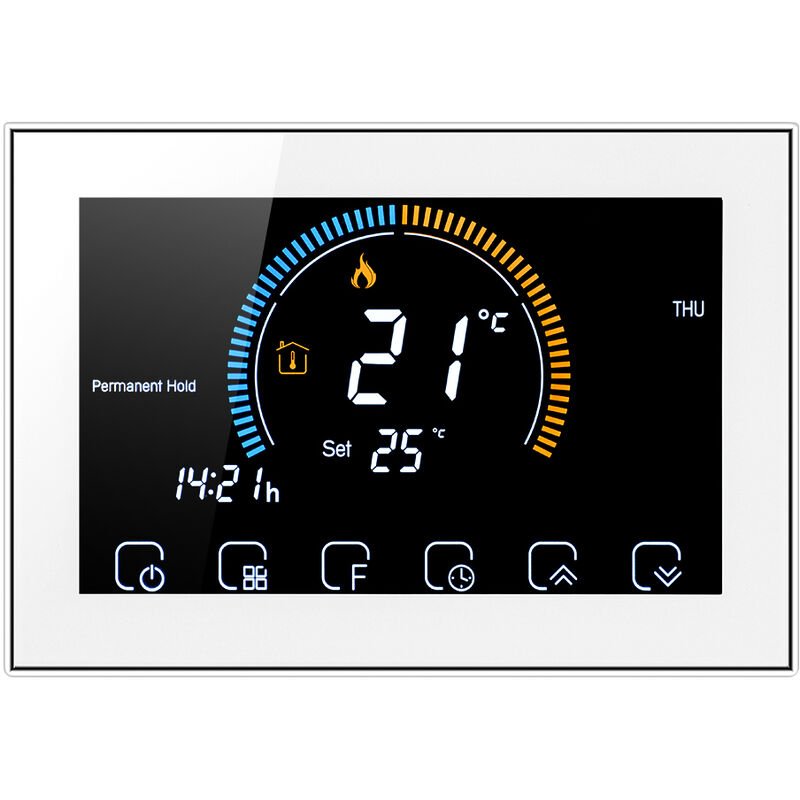

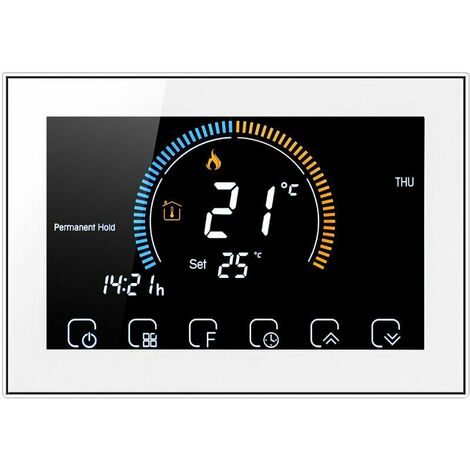

The smart thermostat provides even and comfortable temperature control in every room of your property. With advanced technology, craftsmanship, and quality materials, it offers a safe and reliable solution with a sleek and contemporary design.Technical specifications
- Voltage: AC 95-240V 50-60Hz
- Current load: 5A
- Power Consumption: <1.5W
- Sensor: NTC3950, 10K
- Precision: ± 1 °C or ± 1 °F
- Set temperature Range: 5-35 °C
- Display temperature Range: 5-99 °C
- Ambient Temperature: 0-45 °C
- Humidity Ambient: 5-95% RH (non-condensing)
- Storage Temperature: -5 ~ 45 °C
- Timing error: <1%
- Installation box: 86*86mm square or European round box 60mm
- Wire terminals: 2*1.5mm² or 1*2.5mm² wire
- Protection class: IP20
- Item size: 12.7 * 4.0 * 8.8 cm / 5 * 1.57 * 3.46 inch
- Item Weight: 231g / 8.14 oz
- Package size: 16.5 * 12.5 * 5.8 cm / 6.50 * 4.92 * 2.28 in
- Package weight: 352g / 12.41 oz
Installation
- Compatible with an 86mm hidden box and a European round box 60 mm.
Usage
- 1°C precision maintains the temperature within the level you set.
- °C or °F can be customized.
- 5+1+1 six programmable periods maximize comfort and economy, with switchable manual or programmable mode.
- Data memory when power off, ensuring no loss of settings during power outages.
- Press buttons and hold for 5 seconds to lock/unlock the thermostat, with options for full lock or half lock.
