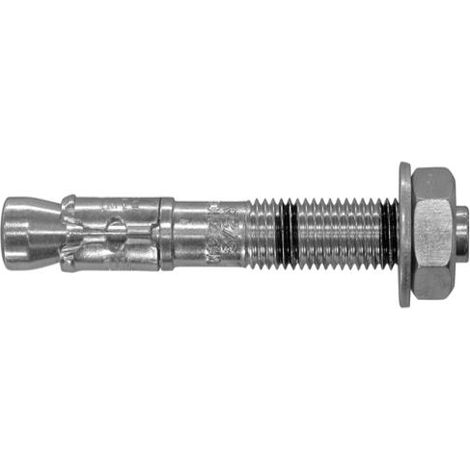

Rawl: R-XPT-06065/5 Throughbolt Zinc Plated (BZP) M6 X 65MM

This range of versatile through fixing bolts are ideal for use in a wide range of applications in concrete of C20/25-C50/60, reinforced and unreinforced concrete as well as natural stone. Possessing embedment depth markings to ensure correct installation and designed with an optimised expander that boasts six grip features to bolster the load bearing capacity of the products. Meets all the necessary industry standards.

Features and Benefits
Each anchor possesses embedment depth markers that help to ensure the correct installation depth of the bolt
The cold formed body makes sure there is a high level of dimensional accuracy to the product
The unique design allows for installation and drilling directly through the fixture for ease and simplicity of use
Available in a variety of thread sizes and lengths to ensure there is a product that suits your specific needs

Typical Applications
Ideal for use when working on cladding restraint, curtain wall, balustrading, barriers, handrails, racking, structural steel and bollards

Standards
ETA 17/0183
EAD 330232-00-0601
MPN: R-XPT-06065/5
EAN: 5906675233505

R-XPT-06065/5 Throughbolt Zinc Plated (BZP) M6 X 65MM Attributes:

Box Quantity:	1
Hole Diameter:	6mm
Length:	65mm
MFR Part No.:	R-XPT-06065/5
Material:	Steel
Spanner Size:	10.0mm
Standards Met:	AT-15-9327/14
Surface Treatment:	Zinc Plated
System of Measurement:	Metric
Thread Size:	M6
Type:	Through Bolt
