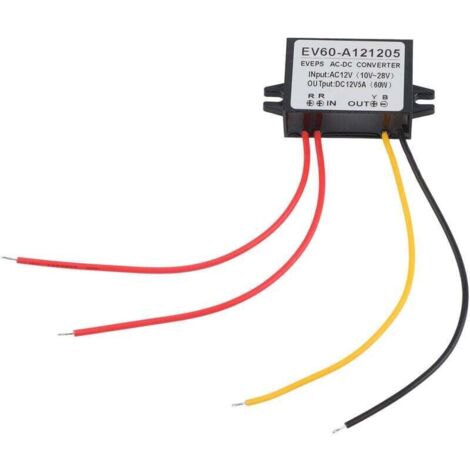

AC 10-28V to DC 12V step-down converter, AC/DC step-down power supply module (5A)

General Description

The 10-28V AC to 12V DC converter is a step-down converter module designed for high stability and reliability thanks to its highly integrated surface-mount components. Housed in a flame-retardant plastic enclosure, it ensures safety and reliability. With an IP67 rating, this converter is water and dust resistant, making it suitable for a wide range of operating environments. It is also equipped with overvoltage, overcurrent, and short-circuit protection, making it ideal for various applications such as: B. Car screens, surveillance cameras, fans, water pumps, motors, and routers.

Technical Data

• Input Voltage: 10–28 V AC
• Output Voltage: 12 V DC ± 0.25 V
• Output Current: 1 A/2 A/3 A/5 A (optional)
• Output Power: 12 W/24 W/36 W/60 W
• Continuous Current: 2 A/3.5 A
• Efficiency: ≥ 96%
• Protection Rating: IP67
• Operating Temperature: -20 to 80 °C

Application

This converter is ideal for powering various electronic devices. It is particularly recommended for the following applications:

• Car screen
• Surveillance camera
• Fan
• Water pump
• Motor
• Router

Additional information

• Package contents: 1 converter
• Note: With an input voltage of 10 to 14 V AC, the output current is less than 1 A. In this case, use with a load is not recommended due to the low efficiency. With an input voltage of 15 to 28 V AC, the efficiency is greater than or equal to 90%, and the output voltage can be maintained at 12 V DC ± 0.25 V. The input voltage is also compatible with a DC input voltage of 16 to 36 V. The efficiency with a DC input is then 83% to 90%.
