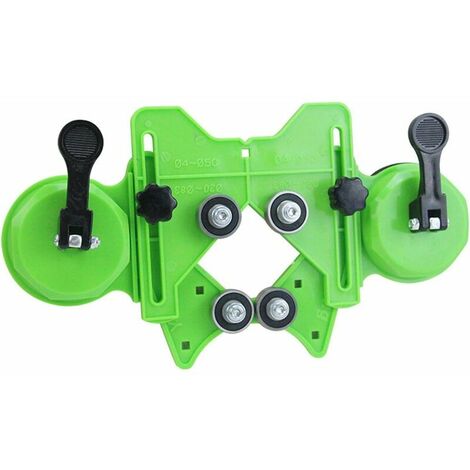

Adjustable hole saw guide co.ukom 4 to 84 mm for drilling centering holes, jig holder, glass tile fixing, openings for ceramic, glass, tile, porcelain, marble

~~£45.99~~

Product information

Description

General description

This adjustable hole saw guide is designed for precise drilling of centering holes in various materials such as tile, glass, marble, granite, and ceramic. It features an adjustable plate size accommodating hole saws from 4 to 83 mm, ensuring versatility for different projects. Made from durable, industrial-grade ABS plastic, this tool is built to last and can be used repeatedly.

Technical specifications

Adjustable plate size: 4-83 mm

Approximate dimensions (L x W): 280 x 200 mm

Material: ABS plastic, rubber

Color: Green

Clamping range: 4-83 mm

Includes: 1 adjustable hole locator

Installation

Make marks on the surface where holes need to be drilled.

Place the bit in the limit hole for positioning, then press down on the suction cup handle to lock the position.

Tighten the positioning shaft to secure the position and stabilize the stabilizer.

Ensure precise opening with no shift in position.

Usage

Ideal for drilling clear holes in tile, glass, aquarium, marble, granite, and ceramic.

It is advisable to use water or coolant with a hole saw when drilling to enhance performance and prolong tool life.

Features

Brand
HOOPZI
Material
Plastic
Pcs per pack
1
Colour
Green
Height
100 cm
Compatible drill
Standard drill
Type of drill accessory
Jig
ManoMano Reference
ME85865783
MMID
407219599515
Product code
DL-CH05437
EAN
9480824653384
