Air-Operated Double Diaphragm Pump Qbk-15 12 GPM 1/2 Inch Inlet And Outlet

Product Description

Not Suitable for Acid, Alkali and Other Corrosive Liquids.

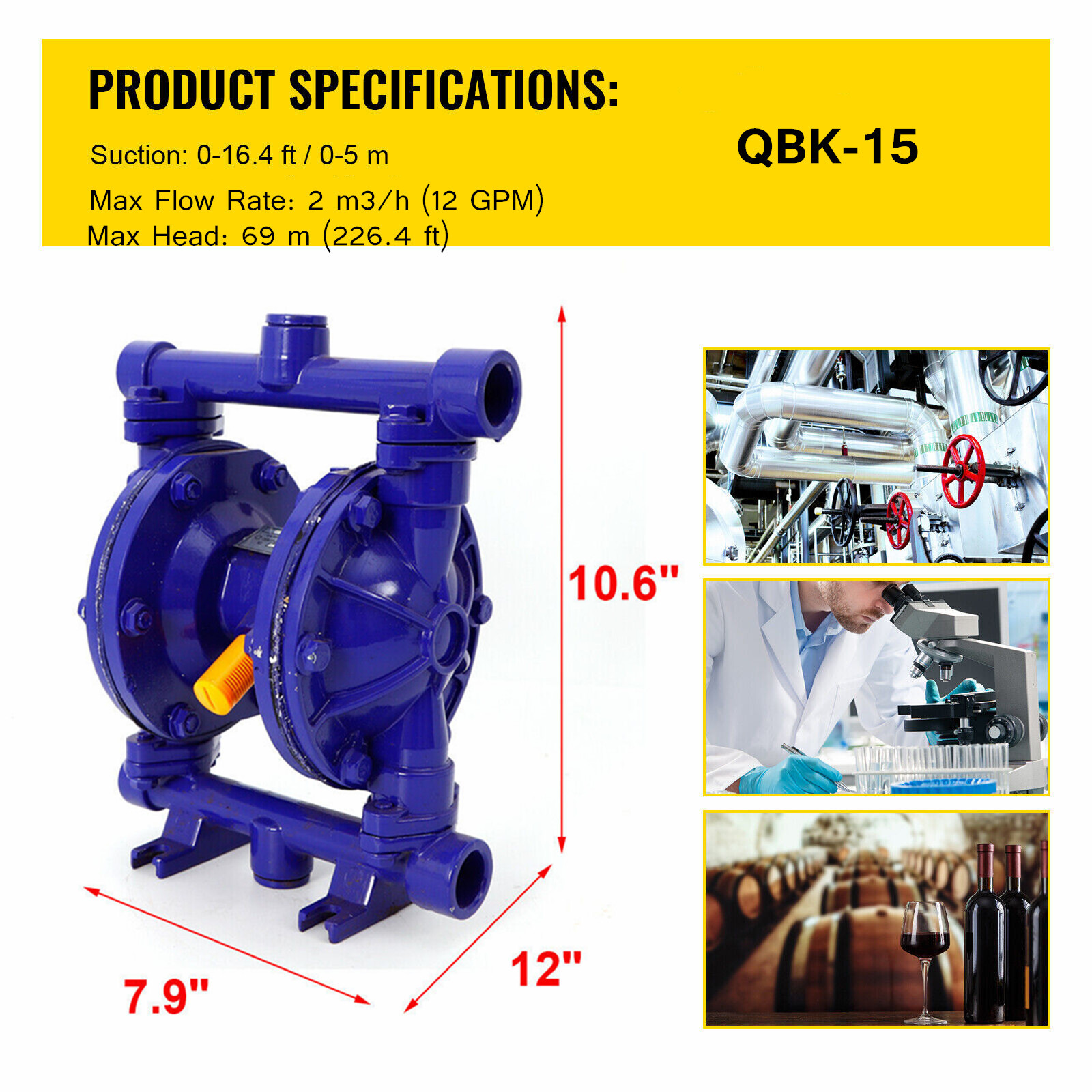

Specifications

Color: Blue

Product: Diaphragm Pump

Type: Double Diaphragm

Operation Type: Air-operated

Model: Qbk-15

Body Material: Cast Iron

Inlet Port: 1/2 Inch (12.7 Mm)

Outlet Port: 1/2 Inch (12.7 Mm)

Air Inlet Size: 1/4 Inch (6.35 Mm)

Gas Nozzle: 0.32 Inch (8 Mm)

Max Flow Rate: 2 M3/H (12 Gpm)

Suction: 0-5 M (0-16.4 Ft)

Max Head: 69 M (226.4 Ft)

Max Psi: 115 Psi

Package Size: 30 X 28 X 20 Cm (11.81 X 11.02 X 7.87 Inch)
Gross Weight: 6.5 Kg (14.33 Lbs)
Superiority

1. Good Abrasion Resistance and Heat Resistance.

2. Environmentally Sound: Bolted Construction for Leak-free Fluid Handling.

3. Efficiency: Motor Design Delivers Optimum Air Efficiency.

4. Reliability: "Unbalanced" Air Valve Ensures No-stall Operation.

5. Serviceability: Easy Access to Ball Checks and Fluid Caps for Maintenance and Repairs.

Application

Perfect for Use with Water. Ideal for Use with Low Viscosity Petroleum Fluids Including Diesel, Kerosene, Motor Oil and some Waste Oil. This Powerful and Efficient Air Operated Diaphragm Pump Is Perfect for All Your Needs in Every Industry!


Working Principle

In the Pump Two Symmetrical Working Chamber Each Equipped with a Diaphragm, the Center Link Will Be Integrated into One. Compressed Air from the Pump Inlet into the Valve, Through the Valve Body to Introduce Compressed Air into One of the Chamber to Promote Movement of the Diaphragm Chamber, While the Other Chamber Gas Emissions. Once the End of the Stroke Is Reached, the Gas Distribution Mechanism Automatically Introduces Compressed Air into the Other Working Chamber to Push the Diaphragm in the Opposite Direction so That the Two Diaphragms Move Back and Forth in Unison.

Feature

Air-operated Double Diaphragm Pump

With 1/2 Inch Inlet and Outlet

1/4 Inch Air Inlet

With 0.32 Inch Gas Nozzle

Good Abrasion Resistance and Heat Resistance

Serviceability and Environmentally Sound

Perfect for Use with Water

Ideal for Use with Low Viscosity Petroleum Fluids

Widely Used in Various Industries

Package Content

1 X Air-operated Double Diaphragm Pump Qbk-15

1 X Product Manual
