General description

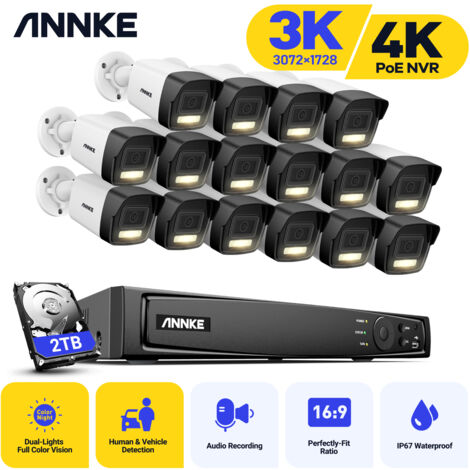

The ANNKE 3K Security Cameras CCTV Kit is a comprehensive video surveillance system featuring 16 high-definition 5MP IP cameras and a 16-channel NVR with a 2TB HDD. This system is designed for easy installation and operation, providing ultra-clear video quality and advanced features for enhanced security.
Technical specifications
- Camera Resolution: 3K (3072x1728 @ 20fps)
- Lens: 2.8mm @ F1.6
- Viewing Angle: 116°
- Night Vision: Infrared up to 30m, White Light up to 20m
- Video Compression: H.265+/H.265/H.264+/H.264
- Audio Compression: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
- Max Recording Resolution: Up to 8MP (3840 x 2160) @ 30fps
- Operating Power: DC 12V ± 25%, max. 5W; PoE (802.3af), max. 6.5W
- Dimensions (NVR): 315 x 240 x 48 mm (12.4” x 9.4” x 1.9”)
- Weight (NVR): 1 kg (2.2 lbs)
- Operating Temperature: -10 °C to +55 °C (14 °F to 131 °F)
- Storage: Supports microSD/SDHC/SDXC up to 256 GB
- HDD Capacity: Up to 8 TB
Compatibility and accessories
- Includes 16 cameras
- 2TB HDD included
- Power Adapter for NVR
- User manuals for both NVR and cameras
Installation
The ANNKE system is designed for plug-and-play installation. Simply connect the PoE IP cameras to the NVR using Ethernet cables for easy setup and management.
Usage
This surveillance system is ideal for monitoring homes, offices, and other properties. Users can access live video feeds remotely via the "Annke Vision" app on smartphones, tablets, or PCs, allowing for real-time monitoring and alerts.
