General description

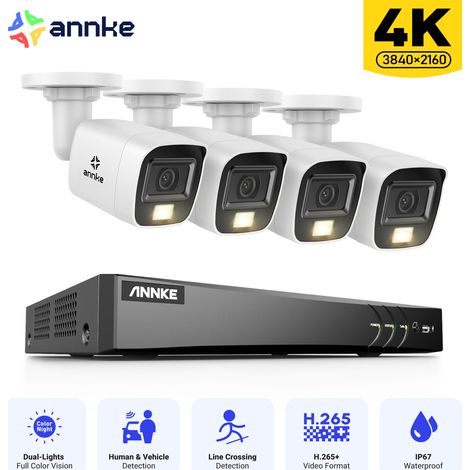

The ANNKE 4K Wired Outdoor Video Surveillance Kit includes an 8-channel DVR and four 8MP cameras, providing high-definition video recording and playback. This security system features advanced motion detection and perimeter protection based on deep learning technology, ensuring reliable surveillance. With remote access capabilities, users can monitor their property from mobile devices, making it a versatile choice for home security.Technical specifications
- Camera Resolution: 3840 × 2160 (4K)
- Lens: 2.8 mm
- Field of View: Horizontal 108°, Vertical 59°, Diagonal 127°
- IR Distance: Up to 25 m
- White Light Distance: Up to 20 m
- Operating Power: DC 12V
- Operating Temperature: -40 °F to 140 °F / -40 °C to 60 °C
- Weatherproof Rating: IP67
- Camera Dimensions: 138.8 mm × Ø70 mm (5.46" × Ø2.76")
- Camera Weight: Approx. 160 g (0.35 lb)
- DVR Dimensions: 315 mm × 242 mm × 45 mm
- DVR Weight (Without HDD): ≤ 2 kg (4.4 lbs)
Compatibility and accessories
- Supports TVI, AHD, CVI, and CVBS camera types
- Compatible with DVR models DW81KD, DW61LD, DT81DXDVR for dual light functionality
- HDD capacity: Up to 10 TB
Installation
Installation involves connecting the cameras to the DVR using BNC cables. Ensure the DVR is connected to a power source and the cameras are positioned for optimal coverage. Follow the manufacturer's guidelines for mounting the cameras securely.Usage
This surveillance system is ideal for monitoring residential and commercial properties. Users can access live feeds and recorded footage remotely via mobile devices, enhancing security management.Other information
