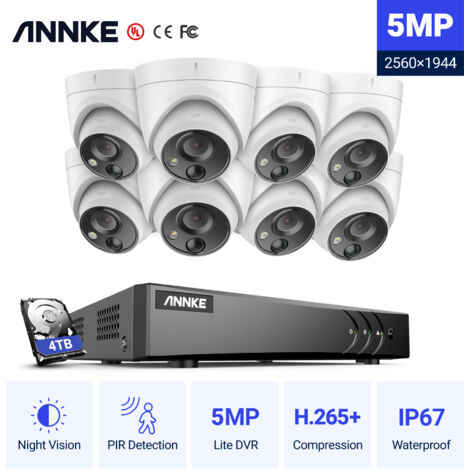

The ANNKE 8CH CCTV Kit is a comprehensive security camera system designed for effective remote monitoring. It features advanced night vision capabilities, a robust waterproof design, and smart detection technology, making it suitable for both indoor and outdoor use. With a 4TB HDD included, this system ensures extensive recording capabilities while maintaining high-quality video output.
Technical specifications

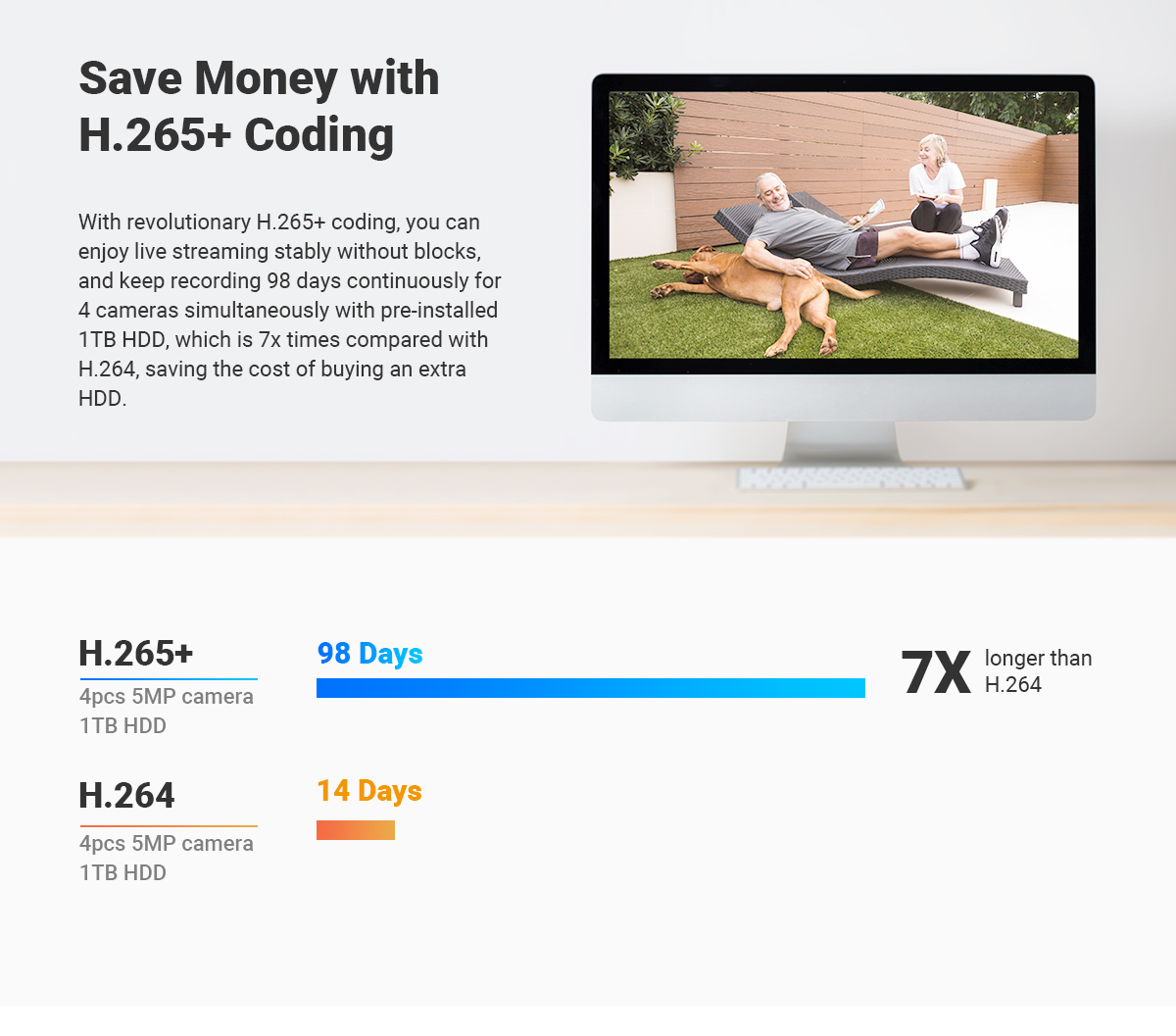

Video Compression: H.264+/H.264/H.265/H.265 Pro+
Video Input: 8CH Analog HD/Analog + 2CH IP Video (up to 12 channels in IP enhanced mode)
Video Output: HDMI and VGA Up to 1080P
Audio Input: 1-ch RCA, 8-ch via coaxial cable
Audio Output: 1-ch RCA
Supported Camera Types: HD TVI Input (3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p), AHD Input (5MP(20F), 4MP, 1080p, 720P), CVI Input (5MP(20F), 4MP, 1080p, 720P), CVBS Input, IP Video Input (6MP/5MP/4MP/3MP/1080P/720P)
Analog HD Playback Resolution: 3K Lite/5MP Lite/4MP Lite@12fps, 1080p/720p@15fps
IPC Playback Resolution: Up to 6MP
Max Playback Channel: 8-ch
Total Bandwidth: 96Mbps
Remote Connection: 64
HDD Capacity: Up to 10TB
Operating Power: DC12V, ≤ 12W (without HDD)
Working Temperature: -14 °F – 131 °F / -10 °C – 55 °C
Dimensions (W x H x D): 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Min. Illumination: Color: 0.01 Lux@(F1.2, AGC On), 0 Lux with IR
Angle of View: 85.5°
Night Vision Distance: Up to 100 ft/30 m

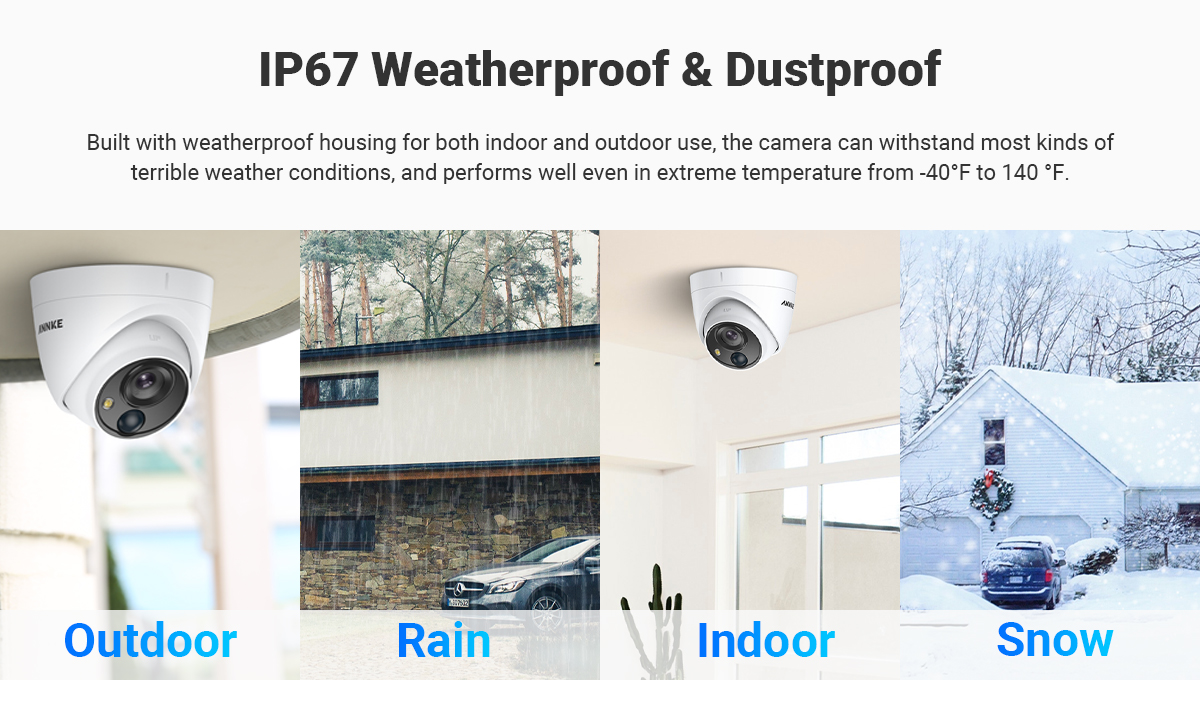

Weatherproof Rating: IP67
Dimensions (L X W X H): Φ4.32” X 3.53” / Φ109.8 X 89.75 mm
Weight: 0.53 lb / 242 g
Usage
The ANNKE CCTV Kit is designed for easy remote access via smartphones and tablets, allowing users to monitor their property in real-time. The system sends push notifications and email alerts when suspicious movements are detected, enhancing security and peace of mind.
This is not a joke, you can't find better price than this. Everything is fine, the quality is excellent base on the price. Note, *The camera are NOT 5mp - it is 5mp lights *It is better to use cat6 if you can cheap one but cat 5 will do. And the reason is that you can distribute the cable in ease using cat5/6 cable *Use balun video(bnc connectors) for both end that would make the video connection stable *(Recommend) use better power supply to organise it as well to help stable power.
MMick
Published on 06/10/2022, United Kingdom
The product is excellent value for money and in my view good quality. The cameras are plastic, the cheaper system removed was aluminium but this, again in my view doesn't detract from the quality. We fitted white cameras, removing black less obtrusive ones, our thinking was it needs to be noticed and this is helped by the bright LED light that shines from the front of the cameras. . This light can be set to flash on detection of movement which is very striking and had to be turned off on one of the cameras as it could cause a nuisance to our neighbours. Be aware though if you order white cameras you get white cables, in my view black needed to be supplied as this is less noticeable when clipped to the outside wall The only downside is the very poor instruction book, the system is pretty well set up by default settings but if you want to change anything like the LED strobing (flashing) the menu systems are quite complicated. The poor instructions meant we needed to Google stuff and refer to you tube videos to help. There needs to be a detailed instruction book available to download. Overall the system is excellent, high resolution and a significant addition to the security of our property, its a great benefit to be able to check your property when you are away from home. This is a significant improvement to our old system. Very easy to install as everything plugs in and an average DIY person would find fitting it a breeze, the more challenging bit is changing any of the default settings, this could be due to my age and a lack of familiarity of multiple window menu systems, something that a younger person would probably find quite simple.
