General description

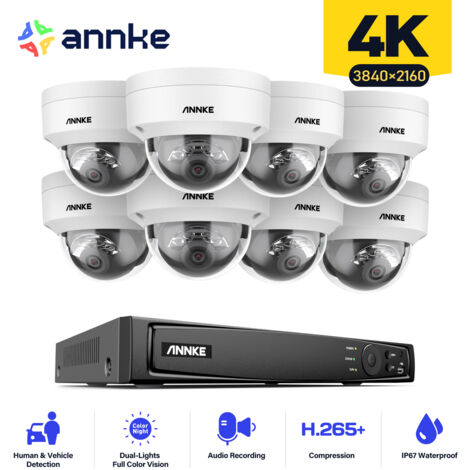

The ANNKE 8CH CCTV Kit is a comprehensive security solution featuring a 4K PoE Network Video Recorder (NVR) and eight 8MP cameras. This system is designed for high-definition surveillance, offering advanced features such as smart dual light technology, motion alerts, and remote access capabilities. With its robust construction and IP67 rating, it is suitable for both indoor and outdoor use, ensuring reliable performance in various environments.Technical specifications
- Max Recording Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Max Playback Resolution: Up to 12MP (4096 x 3072) @ 30fps
- Video Output: HDMI up to 4K (4096 x 2160), VGA up to 1080p (1920 x 1080)
- Incoming/Outgoing Bandwidth: 80/80 Mbps
- HDD Capacity: Up to 8 TB
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- Dimensions (W x H x D): 12.4” x 9.4” x 1.9” (315 x 240 x 48 mm)
- Weight (Without Hard Disk): 2.2 lbs (1 kg)
- Camera Image Sensor: 1/2.4" Progressive Scan CMOS
- Camera Max Resolution: 3840 x 2160 (8MP)
- Camera Lens: 4 mm
- Camera Weight: 1.2 lbs (550 g)
- Camera Dimensions: Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
Compatibility and accessories
- Compatible with up to 8 ANNKE IP cameras and other ONVIF cameras
- Supports on-board storage up to 512 GB (SD card slot)
Installation
- Easy installation with built-in PoE inputs for connecting IP cameras
- Requires a stable internet connection for remote access
Usage
- Live view, recording, and playback of video footage
- Receive instant alerts via app and email for motion events
- Customize motion detection areas and privacy masks
Other information
