General description

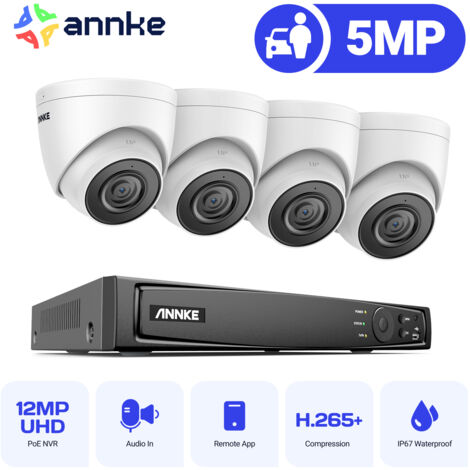

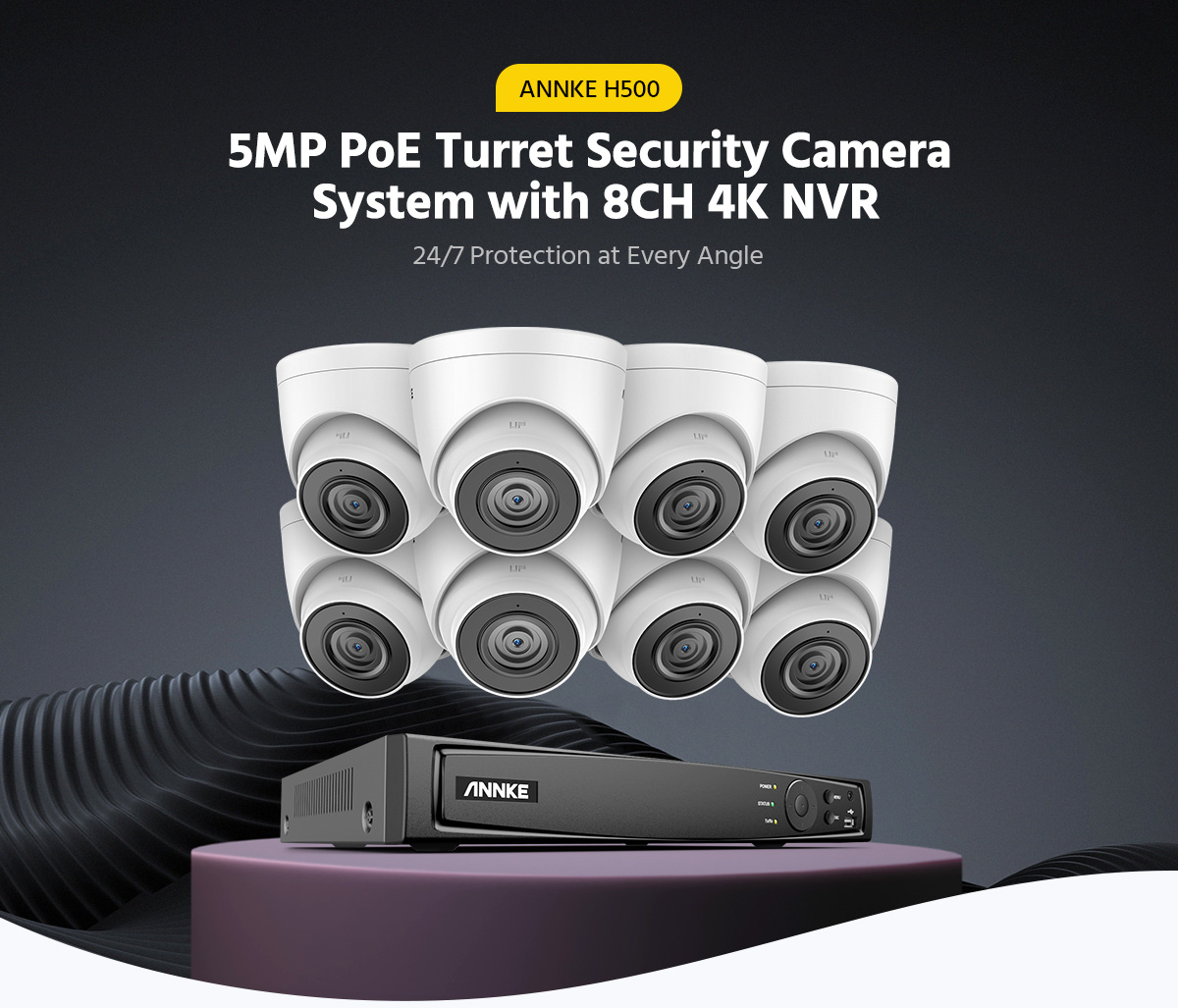

This ANNKE 8CH CCTV Kit Security System features a 4K NVR and four 5MP IR network cameras, providing high-definition surveillance with advanced motion detection capabilities. The system is designed for both indoor and outdoor use, ensuring reliable security monitoring in various environments.Technical specifications
- NVR Decoding Format: H.264+/H.264/H.265/H.265+
- IP Video Input: 8CH PoE
- Video Output: HDMI up to 4K (4096 × 2160), VGA up to 1080p (1920 × 1080)
- Max Recording Resolution: Up to 12MP (4096 X 3072) at 30fps
- Max Playback Resolution: Up to 12MP (4096 X 3072) at 30fps
- Max Playback Channel: 8CH
- HDD Capacity: Up to 8 TB
- Operating Power: DC 48 V
- Power Consumption: ≤10 W (Without HDD and PoE)
- Working Temperature: 14 °F ~ 131 °F (-10 °C ~ +55 °C)
- NVR Dimensions: 12.4” X 9.4” X 1.9” (315 X 240 X 48 mm)
- NVR Weight: 2.2 lbs (1 kg)

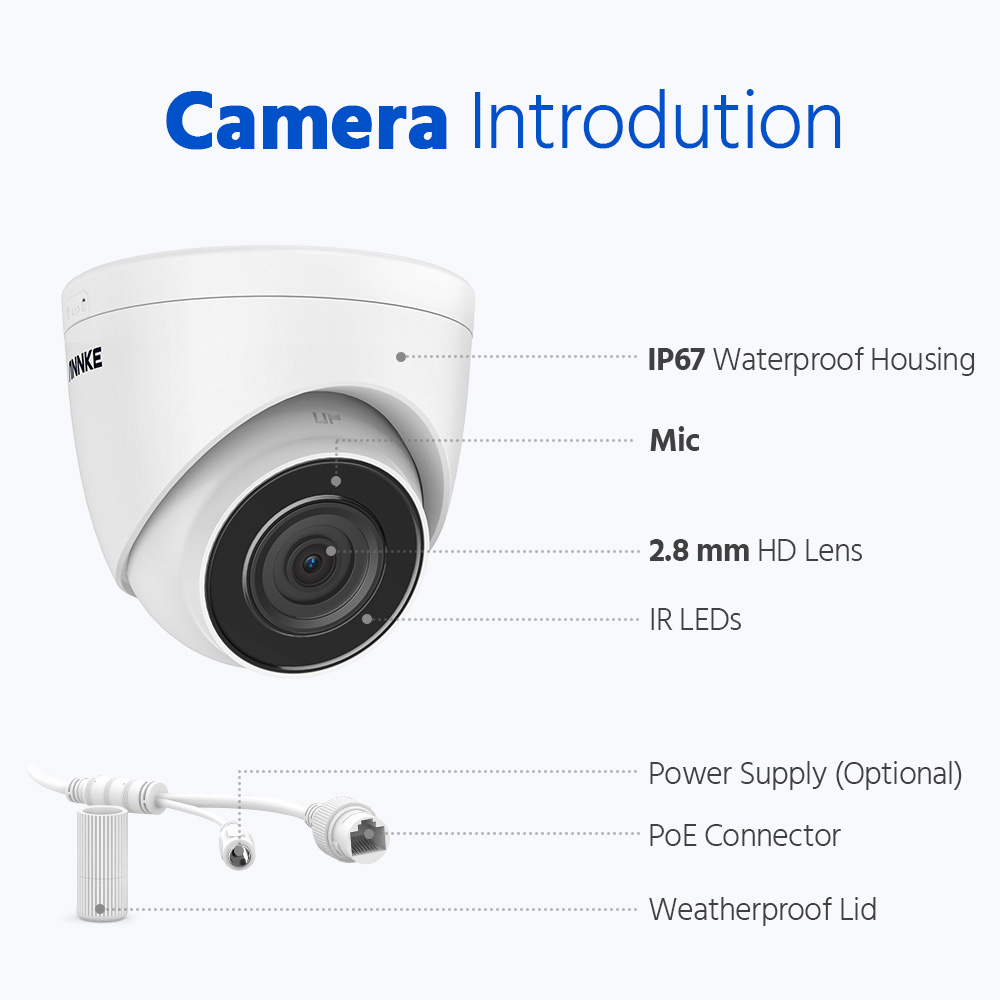

- Camera Image Sensor: 1/3" Progressive Scan CMOS
- Camera Max Resolution: 3K (3072*1728)
- Camera Lens: 4 mm
- Camera Night Vision Distance: Up to 100 ft (30 m)
- Camera Operating Power: DC 12 V ± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
- Camera Dimensions: Ø 110 × 100.8 mm (Ø 4.3" × 4.0")
- Camera Weight: 0.6 lb (270 g)
Compatibility and accessories
- Supports connection to third-party network cameras
- Built-in microSD/SDHC/SDXC Slot, up to 256 GB
Installation

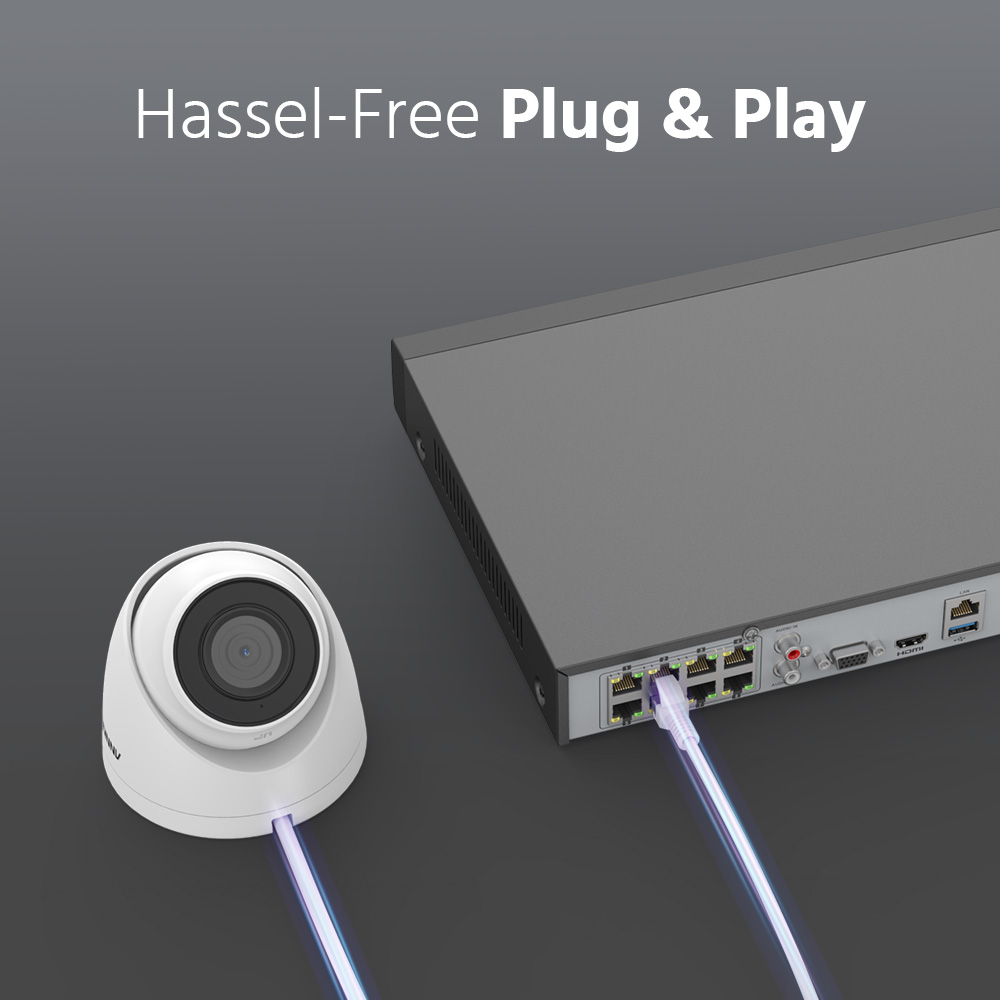

- Easy installation with PoE support for simplified wiring
- Includes options for wall or ceiling mounting of cameras
Usage
- Live view, recording, and playback up to 12 MP resolution
- Customized motion areas and privacy mask settings
- Multiple recording options: continuous, scheduled, and motion-triggered recording
- Remote monitoring via iPhone, iPad, and Android devices
