Product information

Description

General description

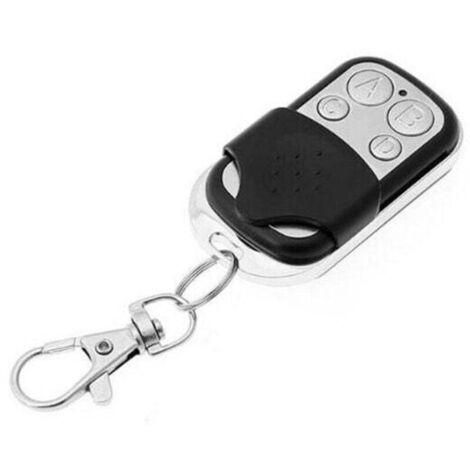

This is a universal garage door remote control with a fixed frequency of 433.92 MHz, designed to duplicate common fixed code remote controls and learning functions. It features a small key ring for easy portability and can directly replace old or damaged originals. The buttons are equipped with sliding covers to prevent accidental operation.

Technical specifications

Frequency: 433.92 MHz

Number of buttons: 4

Installation

Steps to erase codes: Simultaneously press and hold the left and right buttons on the top of the remote control. The LED indicator will flash 3 times. Release the left button (do not release the right) and click the left button 3 times. The LED indicator will flash quickly, indicating that all memory data has been erased.

Steps to copy the code: Hold the original remote control in one hand and the copied remote control in the other. Place both remote controls side by side on a desk. Press the buttons you want to copy at the same time. If the LED indicator flashes three times quickly, the code has been copied.

Usage

Suitable for garage doors, cars, telescopic doors, passage doors, parking locks, anti-theft devices, and industrial control products.

Other information

Features

Brand
COOCHEER
Colour
Black
Pcs per pack
20
Height
3 cm
Width
19.5 cm
Length
17 cm
Material
Plastic
Type of electrical installation
Suspension
Weight
200 g
Battery technology
Ni-mh
Motorisation accessory type
Remote-control
Motorization use
For gate
ManoMano Reference
ME92787858
MMID
882663532894
Product code
HD129-051320
EAN
1084158245277

Automatic Gate Remote Control, 3-Frequency 433.92MHz Kit, Universal Gate Remote Control, 4-Button Universal Gate Remote Control, Automatic Gate Remote Control
