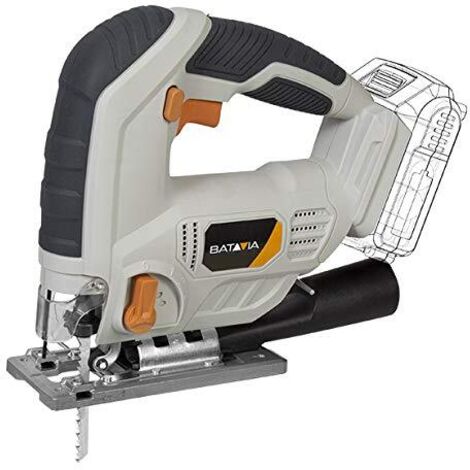

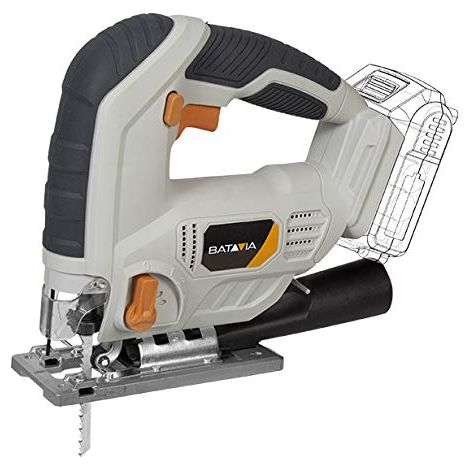

Batavia 7062513 MAXXPACK Jigsaw 18V Bare Unit BAT7062513

Name: Batavia 7062513 MAXXPACK Jigsaw 18V Bare Unit BAT7062513
Brand: BATAVIA
SKU: 7062513
Availability: OutOfStock

Product out of stock

Product information

Description

General description

The Batavia MAXXPACK 18V Cordless Jigsaw (Bare Tool, Model BAT7062513) features a compact and lightweight design for easy handling. It allows quick, tool-free blade changes and includes an adjustable dust extraction system with a dust extraction adapter. The tiltable base enables cutting at angles from -45° to 45°, and it offers four pendulum positions for versatile cutting, including straight and curved cuts. The integrated parallel guide ensures precise control during operation, making it suitable for cutting various materials such as wood, metal, and plastic, ideal for both DIY projects and professional use.

Technical specifications

Battery Voltage: 18V Li-Ion

No Load Speed: 0-3000 strokes per minute

Base Plate Angle: -45° to 45°

Max Cutting Depth - Wood: 80mm

Max Cutting Depth - Metal: 6mm

Max Cutting Depth - Plastic: 12mm

Product Weight: Approximately 1.57kg

Sound Pressure Level LpA: 85.9 dB(A)

Compatibility and accessories

Part of the MAXXPACK collection

Compatible with a universal 18V battery and charger (sold separately)

Includes: Jigsaw, parallel guide, Allen key, dust extraction adapter

Installation

Blade change is tool-free and quick, requiring only the Allen key provided

Attach the dust extraction adapter to connect to a vacuum system for cleaner work

Usage

Adjust the base plate to the desired angle for angled cuts

Select the appropriate pendulum setting for straight or curved cuts

Use the parallel guide for precise straight cuts

Operate the jigsaw at the recommended no-load speed for efficient cutting

Other information

This is a bare unit; battery and charger are sold separately. Batavia MAXXPACK Jigsaw 18V Bare Unit BAT7062513

Features

Brand
BATAVIA
Certification body
CE
Power source
Cordless
Blower button
Yes
Parallel guide
Yes
Height
215 mm
Laser
No
Material
Plastic
Pendulum
Yes
Ergonomic handle
Yes
Dust extraction/connection presence
Yes
Battery technology
Li-ion
Voltage
18 V
Accessory-fitting system
No tools required
Blade type
Saw
Sold as a set
Yes
Rotational speed
3000 rpm
Variable speed
Yes
ManoMano Reference
ME19817019
MMID
142993008791
Product code
7062513
EAN
4050255030327
