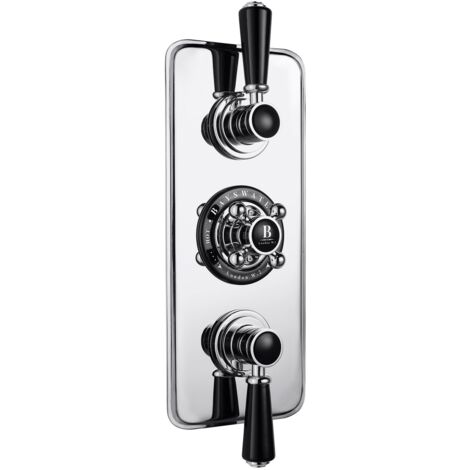

Bayswater Traditional Triple Concealed Shower Valve Black/Chrome

Name: Bayswater Traditional Triple Concealed Shower Valve Black/Chrome
Brand: BAYSWATER
SKU: BAYS403
Price: 346.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

This Bayswater Traditional Triple Concealed Shower Valve in Black/Chrome features advanced ceramic disc technology for durability and ease of use. It is designed to supply water to two outlets, making it suitable for controlling multiple shower accessories such as a fixed head and shower kit. The valve includes triple controls: the top and bottom levers manage the flow of each accessory, while the middle handle regulates the temperature. With full thermal protection in case of cold supply failure, this valve is highly resistant to calcium build-up, making it ideal for hard water areas.

Technical specifications

Shower Type: Manual

Valve Controls: 3

Valve Position: Concealed

Valve Shape: Rectangular

Handle Type: Crosshead/Lever

Handle Shape: Round

Outlets: 2

Min Pressure: 0.1 Bar

Max Pressure: 4.0 Bar

Shower Valve Height: 320mm

Shower Valve Width: 120mm

Shower Valve Depth: 67-86mm

Inlet Connection Size: 1/2 BSP

Outlet Connection Size: 1/2 BSP

Material: Brass

Colour: Black/Chrome

Style: Traditional

Flow Rate - 0.1 Bar: 5.5 l/min

Flow Rate - 0.5 Bar: 14 l/min

Flow Rate - 1.0 Bar: 20 l/min

Flow Rate - 2.0 Bar: 29 l/min

Flow Rate - 3.0 Bar: 44 l/min

Brand: Bayswater

Collection: Traditional

EAN Barcode: 5055275889725

Manufacturer Part Number: BAYS403

Compatibility and accessories

Suitable for use with all plumbing systems: gravity, pumped, unvented, or combi boiler

Can control two shower accessories

Installation

Fully reversible cartridge can be switched 180 degrees if hot and cold supply positions do not match the valve

Usage

Excellent flow rates achieved even when water pressure is low

Other information

20 Years guarantee (12 months on serviceable and moving parts, subject to normal wear and tear)

TMV2, TMV3 and WRAS approved product
