Bayswater Traditional Triple Exposed Shower Valve Black/Chrome

Name: Bayswater Traditional Triple Exposed Shower Valve Black/Chrome
Brand: BAYSWATER
SKU: BAYS412
Price: 517.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

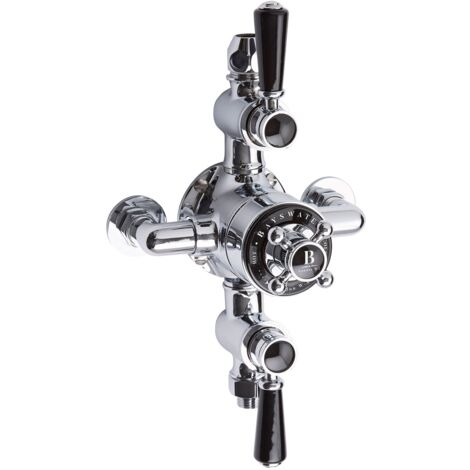

This Bayswater Traditional Triple Exposed Shower Valve in Black/Chrome is designed for both functionality and style. It features a flagship exposed design with black indices and inserts, allowing for control over three shower accessories, such as a fixed head, shower kit, and bath spout. The valve is equipped with triple controls for easy operation.

Technical specifications

Shower Type: Thermostatic Shower Valve

Controls: 3

Valve Position: Exposed

Valve Shape: Round

Handle Type: Crosshead/Lever

Outlets: 2

Min Pressure: 0.1 Bar

Max Pressure: 4.0 Bar

Shower Valve Height: 332mm

Shower Valve Width: 195mm

Shower Valve Depth: 135mm

Inlet Connection Size: 1/2 BSP

Outlet Connection Size: 1/2 BSP

Connection Centres: 150mm

Material: Brass

Colour: Black/Chrome

Style: Traditional

Flow Rate - 0.1 Bar: 4.5 l/min

Flow Rate - 0.5 Bar: 13 l/min

Flow Rate - 1.0 Bar: 18.5 l/min

Flow Rate - 2.0 Bar: 26 l/min

Flow Rate - 3.0 Bar: 33 l/min

Pipe Centres: 150mm

Guarantee: 20 Years (12 months on serviceable and moving parts)

Usage

The thermostatic shower valve provides accurate temperature control within +/- 1 degree, even with fluctuating water pressure. It is capable of controlling up to two accessories simultaneously or separately, ensuring a versatile shower experience.

Other information

Highly resistant to calcium build-up, making it ideal for hard water areas.

Manufactured from solid brass for durability.

Full thermal protection in case of cold supply failure.

Fully reversible cartridge that can be switched 180 degrees if hot and cold supply positions do not match the valve.

EAN Barcode: 5055275889756

Manufacturer Part Number: BAYS412

Features

Brand
BAYSWATER
Colour
Black
NF certification
NF412
Warranty
1.66667 year(s)
Material
Brass
Adapted for PRM
No
With waste included
No
With anti-limescale function
No
Intended use of the tap
Shower
Hand shower included
No
Pull-out spray
No
Water saving
No
Fixing distance
150 mm
Pipe thread size
1/2" (15x21)
Output thread
1/2" (15x21)
Shape
Rounded
Height
33.2 cm
Mixer shower includes
Flexible
Flow limiter
No
Temperature limiter
No
Handle material
Steel
Tap activation mechanism
Mechanical
Thermostatic mixer
Yes
Weight
3.7 kg
Depth
13.5 cm
Concealed tap
No
Wall-mounted tap
No
38°C Safety
No
Tap head only
No
Cool body thermostatic
No
Type of installation method
For mounting
Tap type
Single-lever mixer
Installation type
Wall mounted
ManoMano Reference
ME19134673
MMID
722036391482
Product code
BAYS412
EAN
5055275889756
