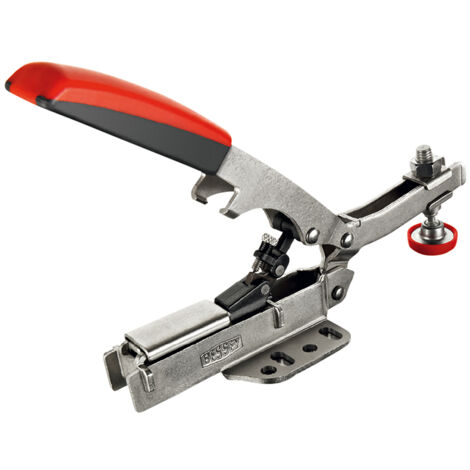

Bessey STC-HH50 Horizontal Clamping Device with 40mm Capacity, 2500N Clamping Force, 210mm Total Length, and 40mm Clamping Height

Description

• These quick-action toggle clamps are designed for secure and versatile holding of workpieces during assembly, welding, or machining. They automatically adjust to different heights and widths, maintaining a nearly constant clamping force without manual adjustments. The clamps are suitable for use in woodworking, metalworking, and DIY projects where quick and reliable fixing is needed.

Technical Specifications

• Maximum clamping force: up to 2,500 N (approx. 250 kg)
• Opening adjustment: automatic and continuous up to 35 mm
• Clamping arm position: closed with lever in horizontal position
• Material: tempered and nickel-plated steel plates, galvanized steel screw
• Handle: high-quality, oil-resistant two-component plastic
• Base plate hole pattern: metric and imperial measurements
• Weight: approximately 0.38 kg

Compatibility and Accessories

• Compatible with various workpieces requiring quick, adjustable clamping
• Includes protective plastic covers for delicate surfaces

Installation

• Attach the clamp to a stable surface using the base plate holes, ensuring secure fixation
• Adjust the screw at the joint to set the desired clamping force

Usage

• Open the clamp by moving the lever to the horizontal position
• Place the workpiece between the clamp arms
• Close the clamp, which automatically adjusts to the workpiece's height and width
• Adjust the clamping force with the screw at the joint if necessary

Other Information

• Suitable for indoor use in workshops, carpentry, and DIY projects
• Designed for repeated use with minimal maintenance
• Clean with solvent and regularly lubricate the screw for optimal performance
