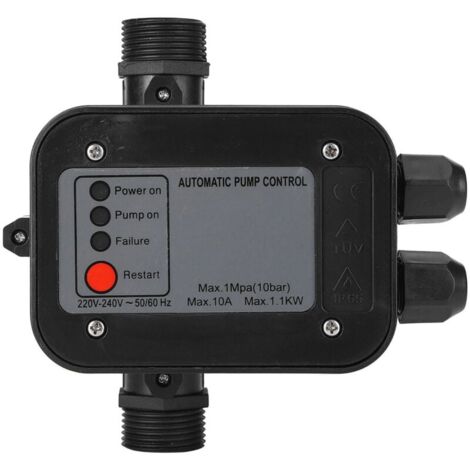

Black 220V self-priming water pump, pressure switch, automatic pressure controller
You may also like
Compare with similar items
Product information
Description
This water pump pressure switch is designed to work with various types of pumps, including self-priming pumps, jet pumps, garden pumps, and centrifugal pumps. It automatically starts and stops the pump according to the set pressure, while also providing protection against dry running, thus extending the equipment's lifespan. Made from high-quality materials, it is reliable and durable.
Technical SpecificationsStarting Pressure: 1.0 Bar, 1.5 Bar, 2.2 Bar
Maximum Current: 10 A
Maximum Pressure: 10 Bar
Voltage: 220 ~ 240 V
Frequency: 50/60 Hz
Maximum Temperature: 60°C
Port Size: G1'
Protection Level: IP65
Maximum Power: 1.1 kW
Size: 23.5 x 16 x 17.5 cm
Weight: 1240 g
Compatibility and AccessoriesCompatible with clean water pumps, including self-priming, jet, and centrifugal models. No additional accessories are required for its operation.
InstallationTo install the pressure switch, follow these steps:
Disconnect the pump's power supply.
Connect the pressure switch to the pump according to the manufacturer's specifications.
Adjust the starting pressure as needed.
Restore power and test operation.
UseUse this pressure switch to automate the operation of your water pump. When it detects a pressure drop below the set threshold, it activates the pump. Once the pressure is reached, it stops the pump to save energy.
Features
- BrandWOIYIC
- Width160 mm
- Height175 mm
- Weight1240 g
- Power1100 W
