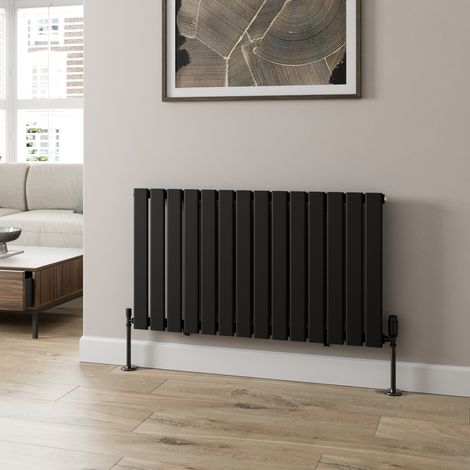

600x1060mm Designer Radiator Horizontal Black Flat Panel Rads Single Panel

The Galiflo Horizontal Single Flat Panel Designer Radiator provides efficient heating and features a contemporary design. The black finish and single flat panel construction make it well suited for a variety of modern interiors, with a streamlined profile for areas where space is important.

• Single flat panel design for a modern, minimalist appearance.
• Horizontal orientation suitable for a range of room layouts.
• Durable black powder-coated finish.
• Constructed from mild steel for effective thermal conductivity and strength.
• Compatible with standard domestic hot water central heating systems.
• Includes fixings and brackets for installation.
• Conforms to BS EN 442 quality and safety standards.

• Style: Modern
• Panel Configuration: Single
• Panel Profile: Flat
• Colour: Black (RAL 9005)
• Orientation: Horizontal
• Height: 600mm
• Width: 1060mm
• Depth: 52mm
• Weight: 19.4kg
• Projection from wall (including brackets): 83mm
• Pipe Centres: 550mm
• Tube Quantity: 14
• BTU Output (Delta 50): 2548
• Watts Output (Delta 50): 747
• BTU Output (Delta 30): 1342
• Watts Output (Delta 30): 394
• BTU Output (Delta 60): 3156
• Watts Output (Delta 65): 1019
• Maximum working pressure: 5 bar
• Maximum working temperature: 90°C
• Wall to Centre Tapping: 51 mm (+/- 3 mm)
• Angled TRV Pipe Centres: 1140mm
• Straight TRV Pipe Centres: 1130mm
• Connection size: 4
• Installation Type: Hot Water
• Inlet Connection: G1/2 inches
• Certification: BS EN 442
