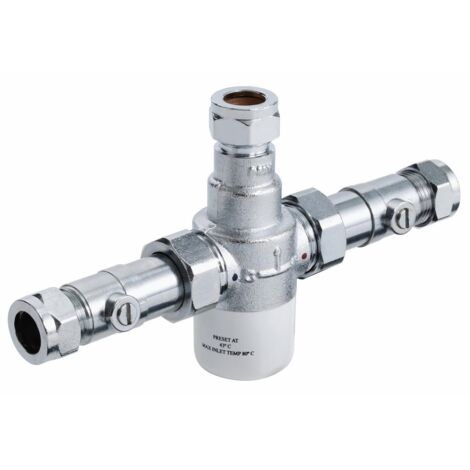

Bristan Commercial MT503 Thermostatic Mixing Valve with Isolation 15mm - Chrome

Name: Bristan Commercial MT503 Thermostatic Mixing Valve with Isolation 15mm - Chrome
Brand: BRISTAN
SKU: MT503CP-ISO
Price: 90.95 GBP
Availability: InStock

Sold by Heat & Plumb

Product information

Description

General description

This Bristan Commercial MT503 Thermostatic Mixing Valve with Isolation, 15mm, Chrome is part of the renowned Commercial range of mixing valves. Manufactured to the highest standards, it adds both style and functionality to your bathroom. This product comes with a 1-year guarantee from Bristan, a leading brand in the industry.

Technical specifications

Mixing Valve Height: 105mm

Mixing Valve Width: 200mm

Inlet Connection Size: 15mm

Outlet Connection Size: 15mm

Max Inlet Temperature: 80°C

Minimum Working Pressure: 0.1 Bar

Maximum Working Pressure: 2.0 Bar

Flow Rate @ 0.2 Bar: 8.5 l/min

Flow Rate @ 0.5 Bar: 15 l/min

Flow Rate @ 1.0 Bar: 21.5 l/min

Flow Rate @ 2.0 Bar: 31 l/min

Material: Brass

Colour: Chrome

WRAS Approval Number: 2303901

TMV2 Approval Number: NSF 2407542

TMV3 Approval Number: NSF2584/0223

Usage

Isolation at mixing point facilitates easy servicing.

Automatic shut-off in the event of hot or cold water supply failure.

Check valves and serviceable filters included as standard.

Operates at a maximum pressure differential of 10:1.

Features

Brand
BRISTAN
Colour
Grey
NF certification
NF105
Warranty
1 year(s)
Material
Brass
